9.5 Amp 14 in. 2-Speed Wood Cutting Band Saw
9.5 Amp 14 in. 2-Speed Wood Cutting Band Saw
9.5 Amp 14 in. 2-Speed Wood Cutting Band Saw – jobsite-ready power and precision for contractors, workshops and serious DIYers.

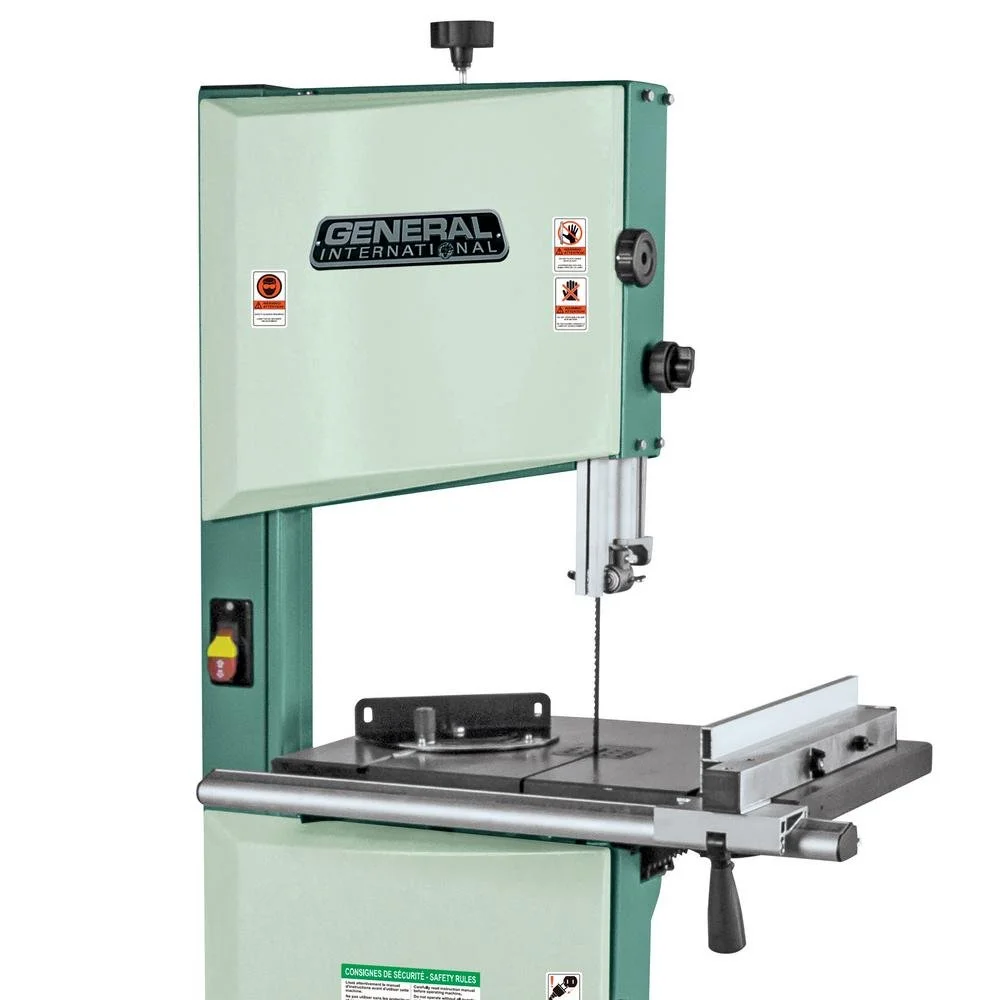

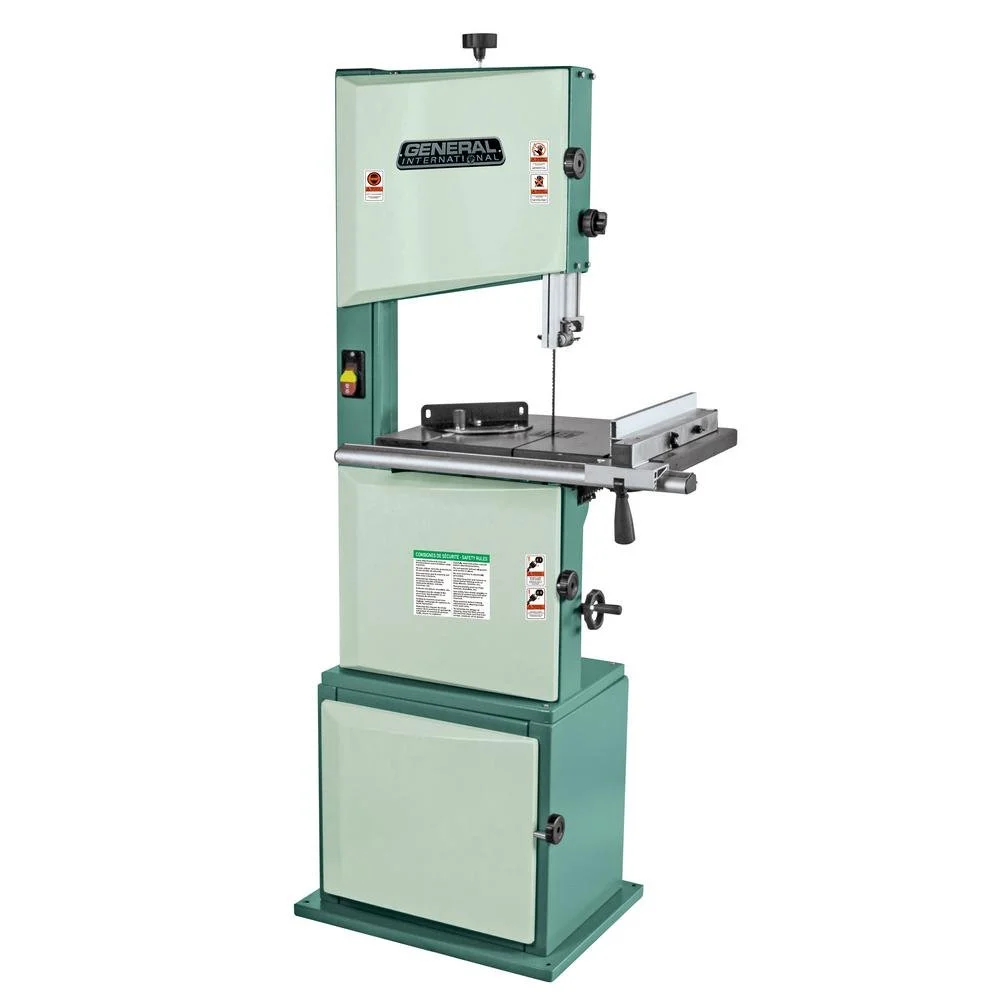

The General International 14 in. 2-Speed Wood Cutting Band Saw is built for reliable, accurate wood cutting in both hard and soft woods. Featuring a heavy-duty welded steel frame, precision-balanced internal wheels with replaceable tires, and a large cast-iron work table, this stationary band saw is designed for stability, durability, and consistent performance.
Two selectable cutting speeds provide flexibility for different woodworking applications, while European-style blade guide bearings allow for precise and easy adjustments. The included open-base steel stand provides a sturdy working platform, while the oversized paddle-style safety switch with removable key helps prevent unauthorized operation.
Key Features
Heavy-Duty Welded Steel Construction
The welded steel frame provides a rigid foundation for demanding woodworking applications. Precision-balanced internal wheels with replaceable tires help promote smooth operation and long-term durability.
Powerful 1 HP Motor
The 1 HP, 120-Volt single-phase motor delivers dependable cutting power for a wide range of wood-cutting applications.
- Motor power: 1 HP
- Voltage: 120V
- Phase: Single phase
- Current draw: 9.5 amps
- Corded operation
Two Cutting Speeds
Two blade speeds allow the saw to be configured for different types of wood and cutting requirements.
- Low blade speed: 1,575 linear feet per minute
- High blade speed: 3,280 linear feet per minute
- Wheel speeds: 436 and 909 RPM
Precision Blade Guide Bearings
European-style blade guide bearings are designed for easy adjustment and accurate blade guidance, helping maintain control during cutting operations.
- Easy-adjusting guide bearings
- Blade width range: 1/8 in. to 3/4 in.
- Blade length: 100-3/4 in.
Large Cast-Iron Work Table
The oversized cast-iron table provides a stable and durable surface for supporting workpieces during cutting.
- Table size: 21-1/2 in. x 15-3/4 in.
- Table tilt: 0° to 45° right
- Table height: 39-3/8 in.
Included Steel Stand
The open-base steel stand provides a sturdy foundation and is designed for easy assembly.
Miter Gauge & Aluminum Crosscut Fence
A miter gauge with an aluminum crosscut fence is included to provide additional versatility for controlled crosscutting and angled work.
Convenient Blade Access
Hinged doors provide quick access to the internal components, while the easily accessible blade tension knob makes blade changes and tension adjustments faster and more convenient.
Safety Lock-Out Switch
The oversized paddle-style on/off switch features a removable safety key to help prevent unauthorized operation and allows the machine to be quickly switched off when needed.
Multi-Size Dust Port
The included dust collection port accommodates multiple hose sizes for flexible workshop dust-management setups.
- Compatible hose sizes: 4 in., 3 in., or 2 in.
Specifications
Motor & Power
| Specification | Details |
|---|---|
| Motor | 1 HP |
| Voltage | 120V |
| Phase | 1 Phase |
| Amperage | 9.5 Amp |
| Power Type | Corded |
| Cord Length | 6 ft |
Cutting Performance
| Specification | Details |
|---|---|
| Wheel Size | 14 in. |
| Wheel Speeds | 436 / 909 RPM |
| Blade Speeds | 1,575 / 3,280 linear FPM |
| Blade Length | 100-3/4 in. |
| Minimum Blade Width | 1/8 in. |
| Maximum Blade Width | 3/4 in. |
| Maximum Width of Cut | 13-3/8 in. |
| Maximum Depth of Cut | 9 in. |
| Band Saw Type | Vertical |
| Cuts Through | Wood |
Work Table
| Specification | Details |
|---|---|
| Table Material | Cast Iron |
| Table Size | 21-1/2 in. x 15-3/4 in. |
| Table Tilt | 0° to 45° Right |
| Maximum Left Tilt | 0° |
| Table Height | 39-3/8 in. |
Dust Collection
| Specification | Details |
|---|---|
| Dust Port | Multi-Size |
| Compatible Hose Sizes | 4 in., 3 in., or 2 in. |
Dimensions & Weight
| Specification | Details |
|---|---|
| Base Dimensions (L x W) | 22-7/8 in. x 17-3/8 in. |
| Product Dimensions | Approx. 18 in. W x 23 in. D x 14 in. H* |
| Product Weight | 194 lb |
| Construction | Steel |
| Work Table | Cast Iron |
| Installation | Stationary |
*The supplied source lists product dimensions separately from the 39-3/8 in. table height and base dimensions; the dimensions above are retained as provided.
Included Accessories
- Open-base steel stand
- Miter gauge
- Aluminum crosscut fence
- Multi-size dust port
- Removable safety switch key
Safety & Convenience
The band saw is equipped with features designed to make operation and maintenance more convenient.
- Oversized paddle-style on/off switch
- Removable safety lock-out key
- Hinged access doors
- Easily accessible blade tension adjustment
- No-tool blade change feature
- Included stand
- Multi-size dust collection port
Ideal Applications
The General International 14 in. 2-Speed Band Saw is suited for:
- General woodworking
- Hard and soft wood cutting
- Curved and straight cuts
- Crosscutting and angled work
- Workshop and stationary woodworking applications
- DIY and professional woodworking environments
Warranty
Manufacturer Warranty: 2-Year Limited Warranty
Why Choose the General International 14 in. Band Saw?
The General International 14 in. 2-Speed Band Saw combines a heavy-duty welded steel frame, precision-balanced wheels, dual blade speeds, a large cast-iron table, adjustable blade guides, and a sturdy steel stand in one versatile woodworking machine. With convenient blade access, integrated safety features, flexible dust collection, and a 1 HP motor, it is designed to provide dependable performance for a broad range of wood-cutting tasks.
