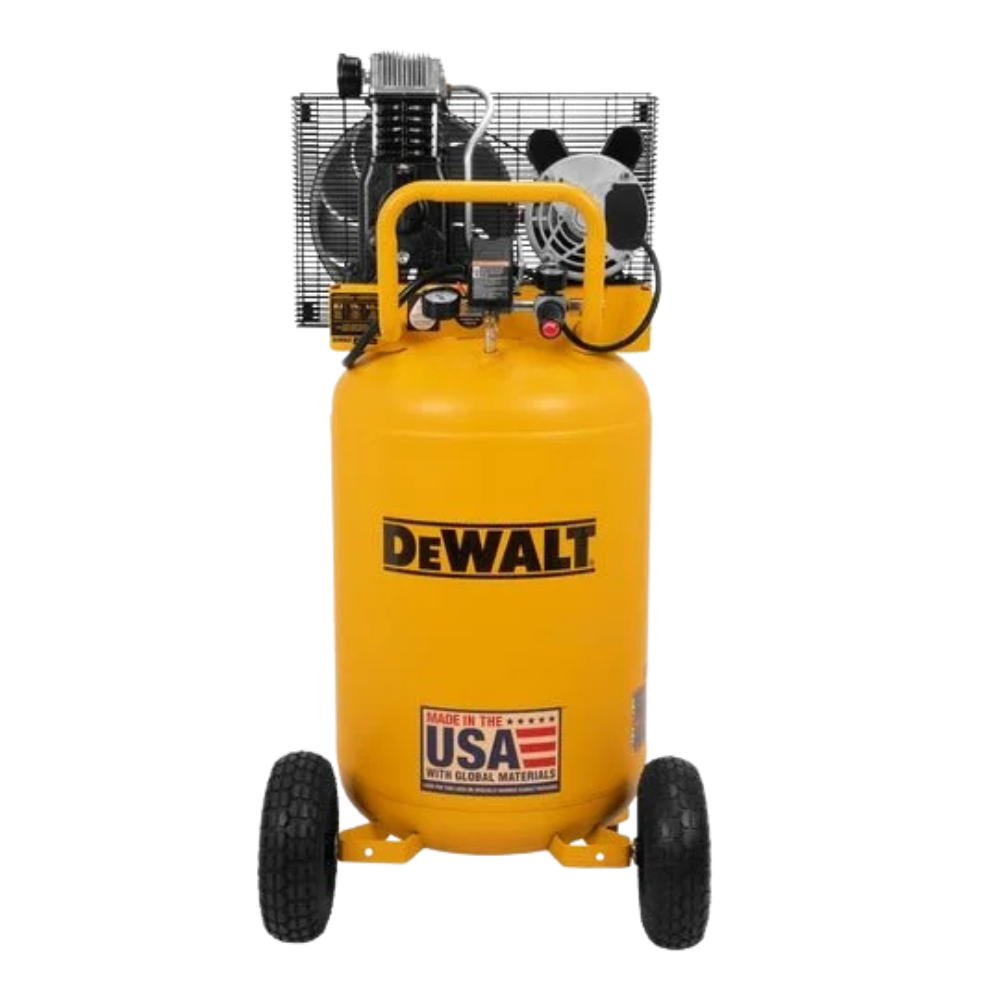

DEWALT 30-Gallons Portable Vertical Air Compressor DXCM303
DEWALT 30-Gallons Portable Vertical Air Compressor DXCM303
DEWALT 30-Gallons Portable Vertical Air Compressor DXCM303 – jobsite-ready power and precision for contractors, workshops and serious DIYers.
DEWALT 30-Gallon Vertical Portable 175 PSI Air Compressor
High-Pressure Performance, Extended Tool Runtime & Job-Site Portability
The DEWALT 30-Gallon Vertical Portable Air Compressor is engineered for demanding workshop and job-site applications, delivering up to 175 PSI maximum working pressure and 6.2 SCFM at 90 PSI. Its high-capacity vertical design provides extended air availability for pneumatic tools while maximizing usable workspace.
Compared with the referenced PORTER CABLE 30-Gallon 135 PSI air compressor, this DEWALT model delivers 30% higher maximum PSI, 29% higher SCFM air delivery, 2.5× longer air-tool runtime, and 23% quieter operation. A high-flow regulator further increases usable air pressure delivered to the connected tool.
Key Features
175 PSI Maximum Working Pressure
The compressor provides high operating pressure for demanding pneumatic applications.
- 175 PSI maximum working pressure
- Designed for demanding air-tool applications
- Provides greater pressure capacity than the referenced 135 PSI compressor
6.2 SCFM at 90 PSI
High air delivery helps keep pneumatic tools supplied with compressed air during extended operation.
- 6.2 SCFM at 90 PSI
- Designed for consistent air delivery
- Supports a wide range of pneumatic tools
2.5× Longer Air-Tool Runtime
The compressor is designed to provide significantly extended tool runtime compared with the referenced PORTER CABLE 30-gallon 135 PSI model.
- 2.5× longer air-tool runtime
- Supports longer work periods between cycles
- Ideal for demanding pneumatic applications
Higher Pressure & Air Delivery
The compressor offers increased pressure and airflow compared with the referenced PORTER CABLE model.
- 30% higher PSI
- 29% higher SCFM air delivery
- Provides greater operating capacity for pneumatic tools
Quieter Operation
Designed to operate with reduced noise compared with the referenced PORTER CABLE 30-gallon compressor.
- 23% quieter operation
- Better suited to workshop environments
- Helps provide a more comfortable working environment

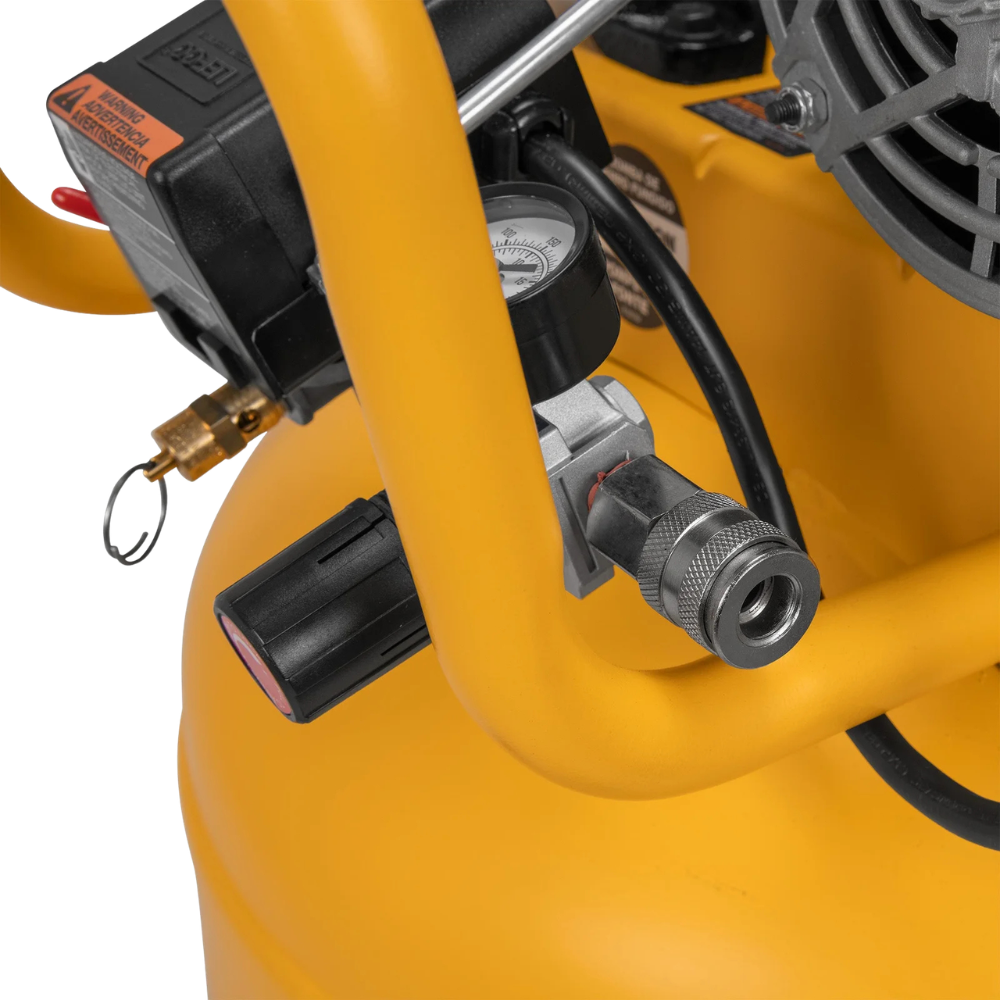

High-Flow Regulator
The included high-flow regulator is designed to maximize usable air pressure delivered to the connected tool.
- High-flow regulator included
- Provides 65% more usable air pressure to the tool versus standard-flow regulators
- Helps optimize pneumatic tool performance
30-Gallon Vertical Design
The large vertical tank provides substantial air storage while maintaining a space-conscious footprint.
- 30-gallon capacity
- Vertical configuration
- Suitable for workshops and job sites
- Designed for convenient placement
Heavy-Duty 10-Inch Pneumatic Wheels
Large pneumatic wheels provide enhanced portability when moving the compressor around a workshop or job site.
- 10-inch heavy-duty pneumatic wheels
- Designed for maximum portability
- Easier movement across work areas and job sites
Specifications
Performance
| Specification | Details |
|---|---|
| Maximum Working Pressure | 175 PSI |
| Air Delivery | 6.2 SCFM at 90 PSI |
| Tank Capacity | 30 gallons |
| Tank Configuration | Vertical |
| Regulator | High-flow regulator included |
| Usable Air Pressure | Up to 65% more to the tool versus standard-flow regulators |
Dimensions & Weight
| Specification | Details |
|---|---|
| Length | 30.5 in. |
| Width | 30.5 in. |
| Height | 54.5 in. |
| Weight | 196 lbs. |
| Wheels | 10-inch heavy-duty pneumatic wheels |
Model Information
| Specification | Details |
|---|---|
| Brand | DEWALT |
| SKU | DXCM303 |
| Product Type | 30-Gallon Vertical Portable Air Compressor |
Performance Comparison
The following figures are based on the comparison information supplied for the referenced PORTER CABLE 30-Gallon 135 PSI air compressor:
| Performance Area | DEWALT DXCM303 |
|---|---|
| Maximum Pressure | 175 PSI |
| Pressure Advantage | 30% higher PSI |
| Air Delivery | 6.2 SCFM @ 90 PSI |
| SCFM Advantage | 29% higher air delivery |
| Tool Runtime | 2.5× longer |
| Noise Level | 23% quieter |
| Regulator Performance | 65% more usable air pressure to the tool vs. standard-flow regulators |
What’s in the Box
- 1 × 30-Gallon Vertical Portable 175 PSI Air Compressor
- Owner’s Manual
- Warranty
Warranty & Satisfaction Guarantee
| Coverage | Details |
|---|---|
| Factory Warranty | 3-Year Limited Factory Warranty |
| Satisfaction Guarantee | 30-Day Satisfaction Guaranteed |
Why Choose the DEWALT DXCM303?
The DEWALT DXCM303 combines a 30-gallon tank, 175 PSI maximum pressure, and 6.2 SCFM at 90 PSI with features designed for demanding pneumatic applications. Its high-flow regulator, extended tool runtime, reduced operating noise, and heavy-duty 10-inch pneumatic wheels make it well suited to both stationary workshop use and mobile job-site work.
With its vertical space-saving design, high air delivery, durable portability features, 3-year limited factory warranty, and 30-day satisfaction guarantee, the DXCM303 is designed to provide dependable compressed-air performance for professional and heavy-duty applications.
