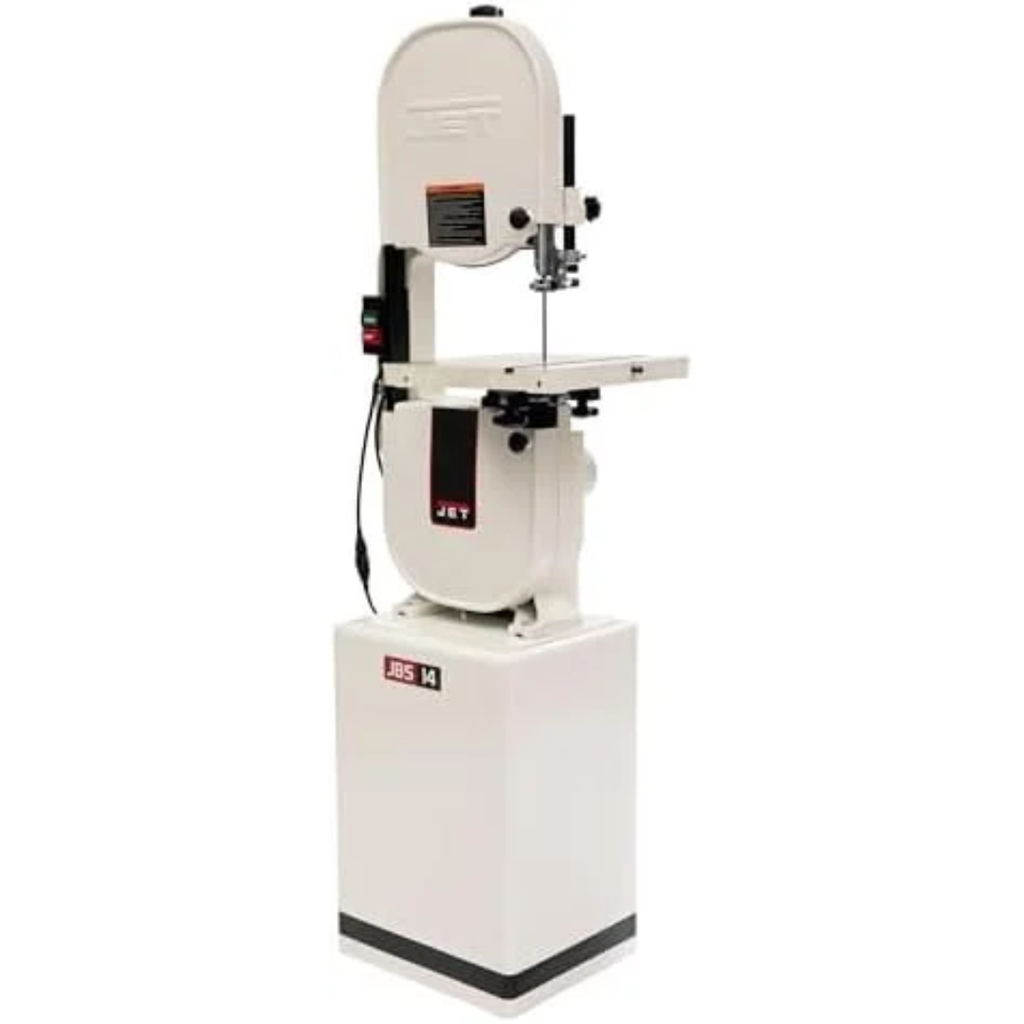

JET 14-Inch Woodworking Bandsaw, 1 HP, 115/230V 1Ph (Model JWBS-14CS)
JET 14-Inch Woodworking Bandsaw, 1 HP, 115/230V 1Ph (Model JWBS-14CS)
JET 14-Inch Woodworking Bandsaw, 1 HP, 115/230V 1Ph (Model JWBS-14CS) – jobsite-ready power and precision for contractors, workshops and serious DIYers.
The JET JWBS-14CS 14 in. Woodworking Bandsaw is designed for accurate, dependable woodcutting performance in demanding workshop environments. With a 1 HP motor, 6-inch resaw capacity, cast-iron frame, computer-balanced wheels, and micro-adjustable blade guides, it provides the stability and control needed for detailed woodworking and larger stock.
Its upper and lower ball-bearing blade guides help reduce friction and extend blade life, while the rack-and-pinion blade guide post makes height adjustments straightforward. The six-spoke, precision computer-balanced wheels are engineered to minimize vibration and support accurate blade tracking.
Key Features
6-Inch Resaw Capacity
- Provides up to 6 inches of resaw capacity
- Suitable for cutting larger pieces of wood
- Designed for a variety of woodworking applications
Heavy-Duty Cast-Iron Construction
- Upper and lower cast-iron frame construction
- Provides increased strength and rigidity
- Cast-iron components help create a stable cutting platform
Rack-and-Pinion Blade Guide Adjustment
- Blade guide post features rack-and-pinion adjustment
- Allows convenient positioning of the upper blade guide
- Helps simplify setup for different workpiece sizes
Ball-Bearing Blade Guides
- Upper and lower ball-bearing guides
- Reduce friction during operation
- Help promote longer blade life
- Provide controlled blade support during cutting
Easy Blade Tracking
- Single-knob tracking adjustment
- Simplifies the blade tracking process
- Makes blade alignment adjustments more convenient
Micro-Adjustable Lower Blade Guide
- Allows precise lower guide positioning
- Reduces setup time
- Makes fine adjustments easier

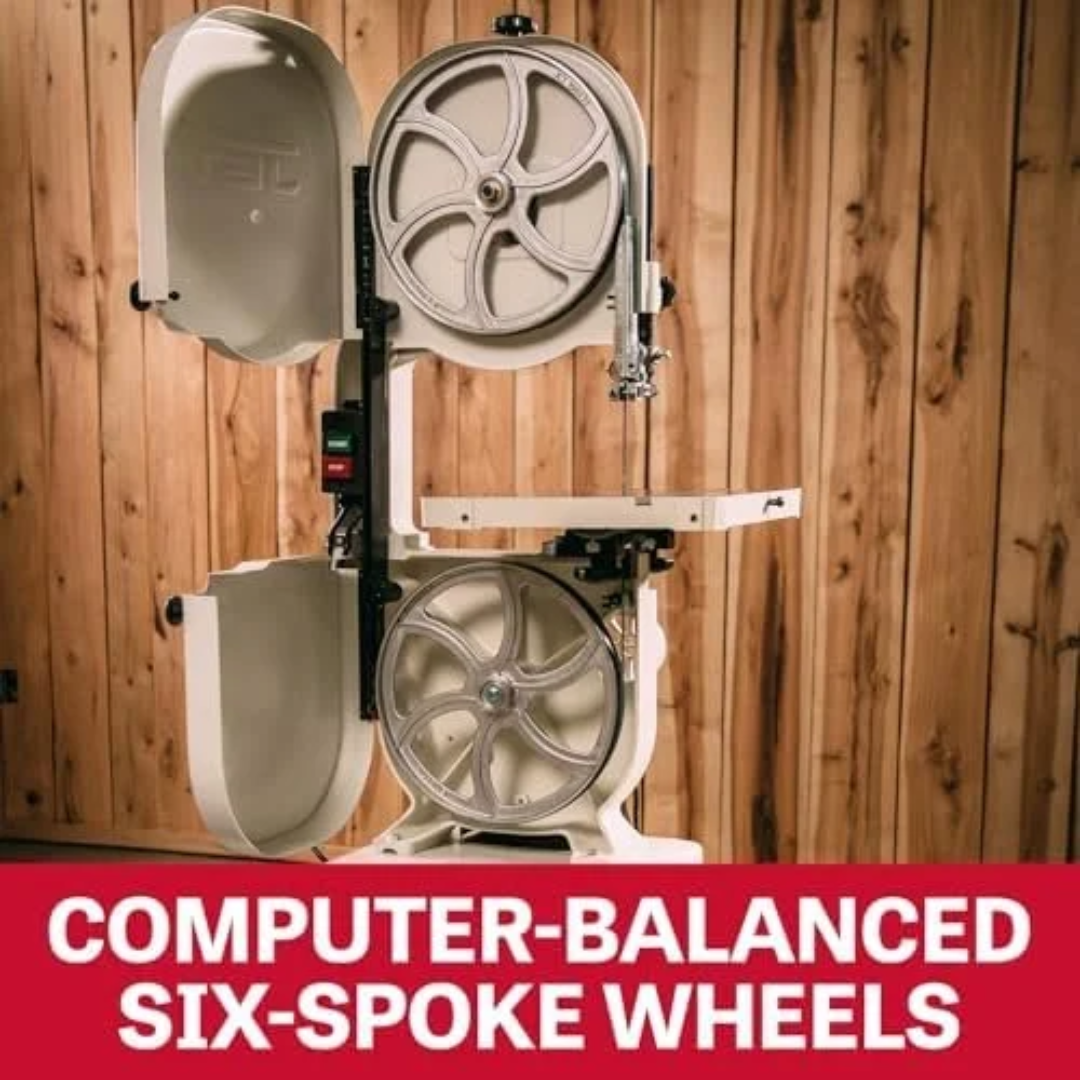

Computer-Balanced Wheels
- Six-spoke wheel design
- Precision computer-balanced for reduced vibration
- Helps maintain accurate blade tracking
- Supports smoother cutting performance
Specifications
Machine Specifications
| Specification | Details |
|---|---|
| Brand | JET |
| Model | JWBS-14CS |
| Part Number | 708115K |
| Machine Type | Woodworking Bandsaw |
| Color | White |
| Motor | 1 HP |
| Voltage | 115V |
| Current Rating | 10 Amps |
| Power Source | Corded Electric |
| Speed | 3000 FPM |
| Resaw Capacity | 6 in. |
| Blade Length | 93.5 in. |
| Blade Included | 3/8 in., 6 TPI |
| Blade Material | High Speed Steel |
| Blade Shape | Rectangular |
| Cutting Angle | 45° |
| Surface Recommendation | Wood |
| Frame Material | Cast Iron |
| Additional Material | Steel |
| Item Weight | 117.8 lb |
| Product Dimensions | 26 in. L × 19 in. W × 68 in. H |
Blade & Guide System
| Feature | Details |
|---|---|
| Upper Blade Guide | Ball Bearing |
| Lower Blade Guide | Ball Bearing |
| Guide Post Adjustment | Rack and Pinion |
| Lower Guide Adjustment | Micro-Adjustable |
| Tracking Adjustment | Single Knob |
| Included Blade | 3/8 in., 6 TPI |
| Number of Teeth | 24 |
| Blade Length | 93.5 in. |
Included Components
The JET JWBS-14CS includes:
- Closed stand with motor
- Pulley cover
- V-belt
- Saw body
- Worktable
- Two table lock knobs
- Table pin
- Trunnion support bracket
- Fastener package
- 3/8 in., 6 TPI blade
Special Features
- Computer-balanced six-spoke wheels
- Micro-adjustable blade guides
- Upper and lower ball-bearing guides
- Rack-and-pinion blade guide post
- Single-knob blade tracking adjustment
- 6-inch resaw capacity
- Closed stand design
Applications
The JET JWBS-14CS is designed for woodworking applications such as:
- Resawing larger boards
- Cutting lumber and wood stock
- Curved and contoured cuts
- General woodworking
- Furniture and cabinet projects
- Workshop fabrication
- Precision woodcutting
Safety & Operation
The rigid cast-iron frame, stable stand, and computer-balanced wheels are designed to support controlled operation and accurate blade tracking. For safe use, always select the appropriate blade for the material and operation, maintain proper blade tension and tracking, and follow the manufacturer’s operating instructions.
Warranty
The JET JWBS-14CS is backed by a 5-year warranty. When used for commercial or industrial purposes, the warranty defaults to 2 years.
Why Choose the JET JWBS-14CS?
The JET JWBS-14CS combines a 1 HP motor, 6-inch resaw capacity, heavy-duty cast-iron construction, precision-balanced wheels, and adjustable ball-bearing blade guides for dependable woodworking performance. Its micro-adjustable guide system and simple tracking adjustment make setup and fine-tuning easier, while the enclosed stand provides a solid foundation for workshop use.
