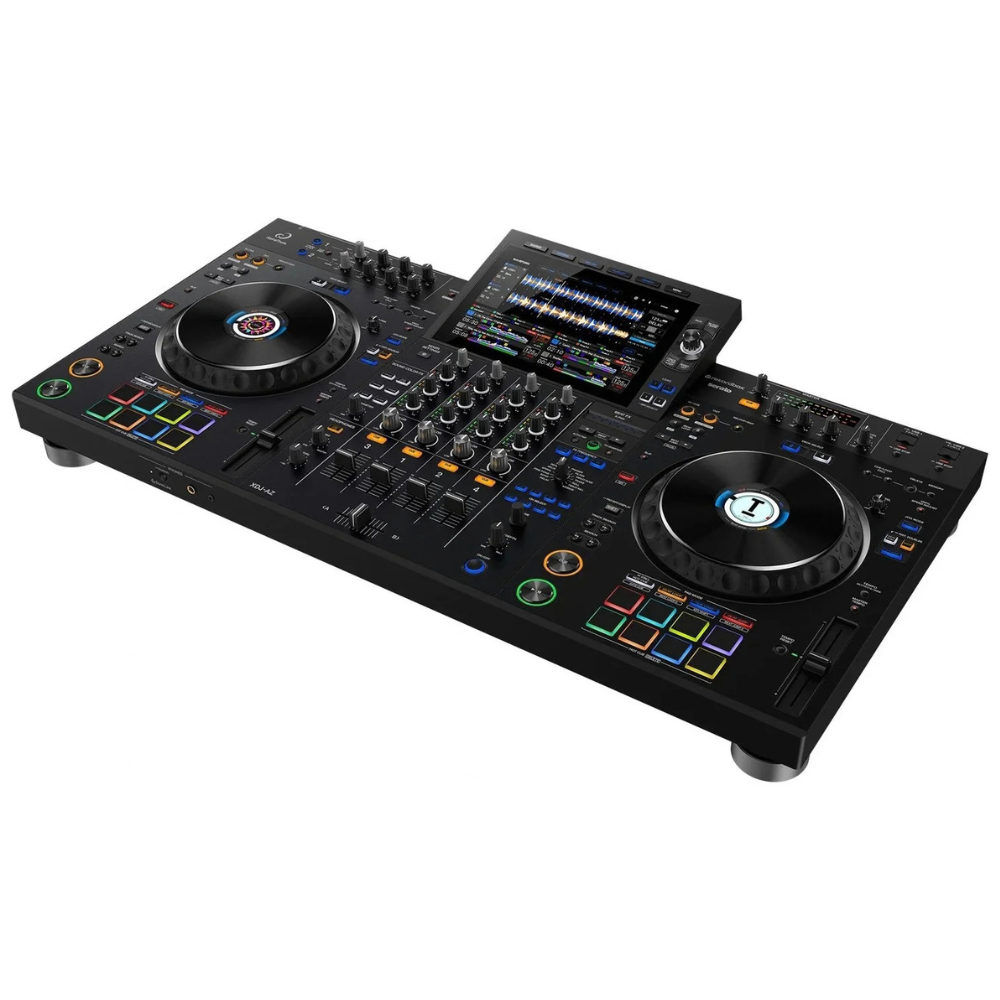

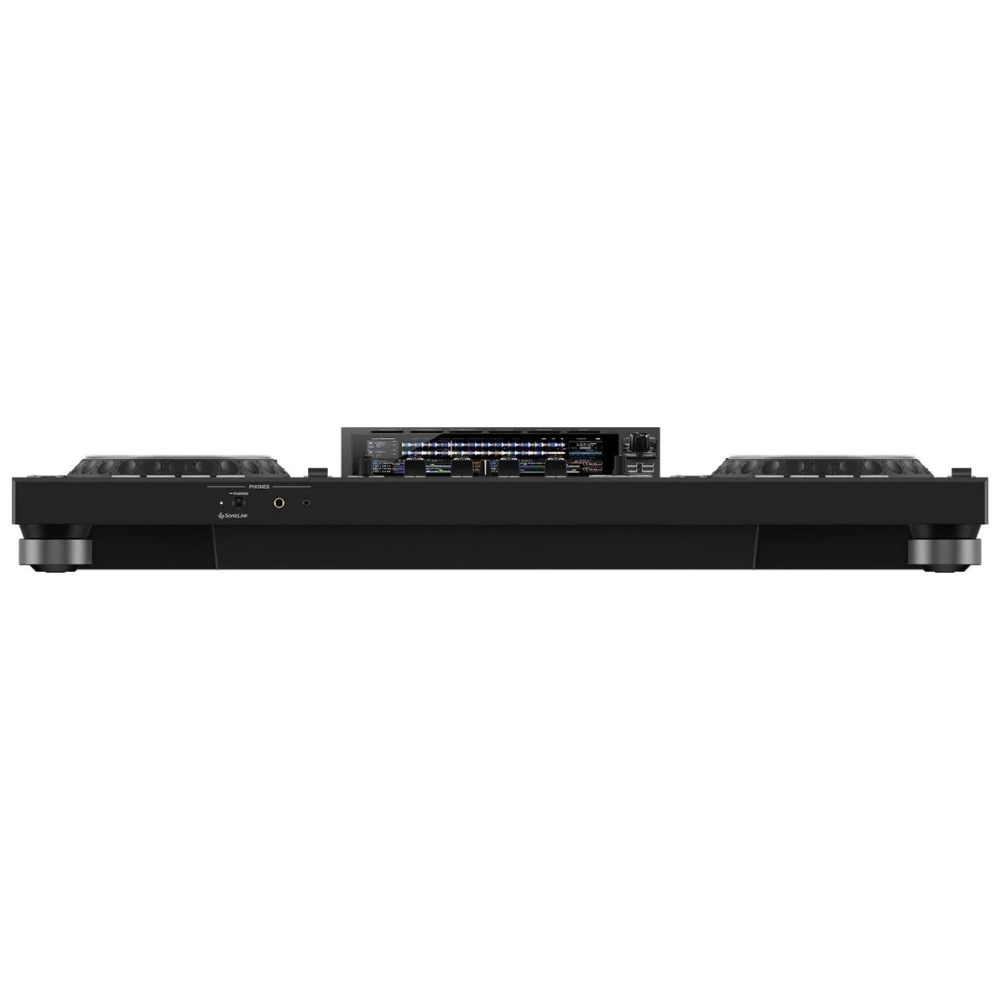

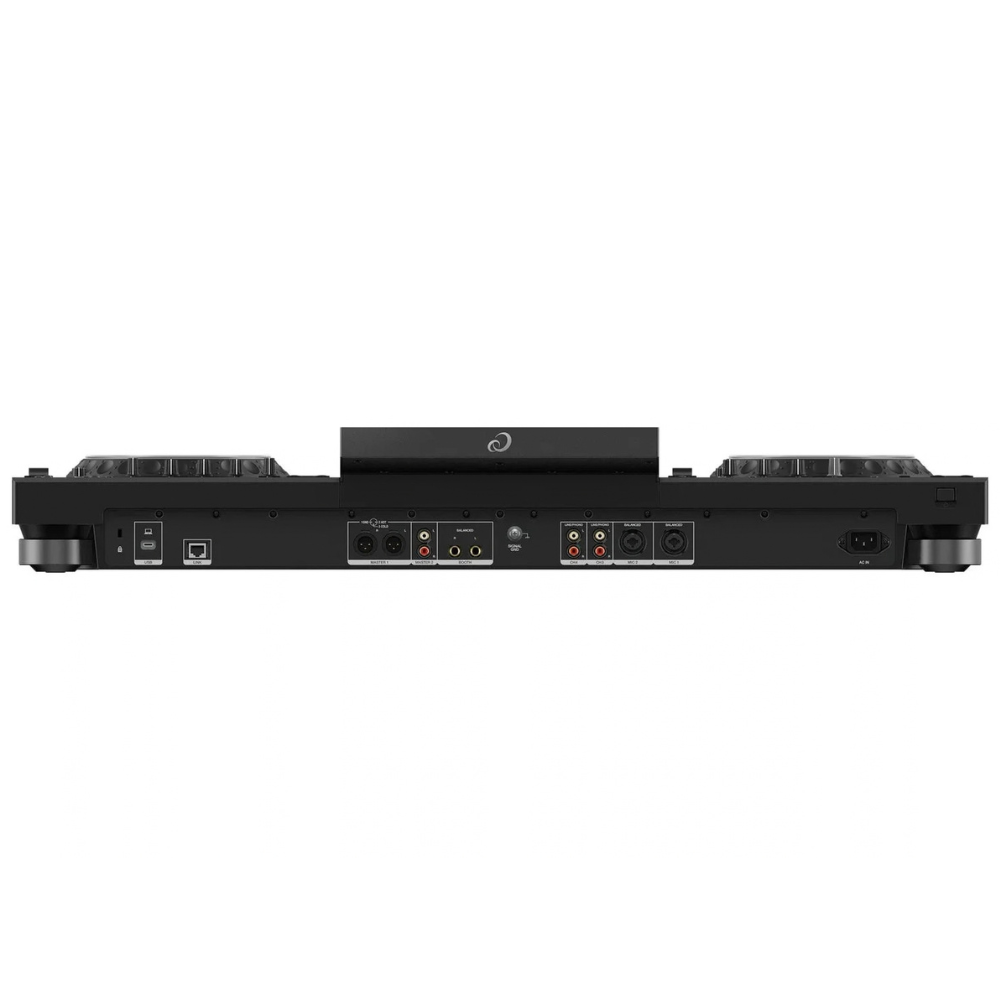

Pioneer DJ XDJ-XZ All-in-One DJ System
Pioneer DJ XDJ-XZ All-in-One DJ System
Pioneer DJ XDJ-XZ All-in-One DJ System – pro-grade performance and reliable quality for home, studio or office.
AlphaTheta XDJ-AZ 4-Channel All-in-One DJ System
Club-Standard DJ Performance with Complete Control
The AlphaTheta XDJ-AZ delivers a club-standard DJ experience with the flexibility of an all-in-one system. It inherits the layout and feel of the CDJ-3000 multi player and DJM-A9 mixer, giving DJs a familiar professional workflow in a streamlined standalone setup.
Built-in Wi-Fi®, extensive media support, Beatport Streaming compatibility, and broad device and DJ application compatibility give you multiple ways to access and perform with your music. Whether you’re playing from USB drives, a computer, mobile device, turntables, or samplers, the XDJ-AZ is designed to adapt to your preferred DJ style.
Key Features
Club-Standard Inspired Layout
The XDJ-AZ inherits the layout and operational feel of Pioneer DJ’s CDJ-3000 multi player and DJM-A9 mixer, providing a familiar workflow for DJs accustomed to professional club equipment.
Built-In Wi-Fi®
Integrated Wi-Fi lets you access cloud-based music libraries and current performance information without relying exclusively on physical media or wired connections.
With rekordbox Link Export, you can also access tracks stored on compatible PC/Mac or mobile devices over Wi-Fi.
StreamingDirectPlay with Beatport Streaming
The StreamingDirectPlay feature enables direct playback from Beatport’s extensive dance music catalog and genre-specific playlists.
Compatible analysis information such as waveform, BPM, and beat grid data helps you mix newly accessed tracks into your sets.
Extensive Media & Device Support
The XDJ-AZ provides multiple ways to perform, including:
- USB drives
- PC/Mac computers
- Mobile devices
- Turntables
- Samplers
- External audio devices
This flexibility makes it suitable for DJs with different performance styles and music sources.
rekordbox & Serato DJ Pro Compatibility
Connect a PC or Mac through the USB Type-C port and use rekordbox for Mac/Windows in Performance mode or Serato DJ Pro without requiring a paid subscription plan, according to the supplied product information.
SonicLink Wireless Monitoring
The integrated SonicLink transmitter enables ultra-low-latency wireless monitoring with compatible HDJ-F10 professional DJ headphones.
A single-button pairing process allows DJs to move around the booth or stage without being restricted by a headphone cable.
SonicLink is AlphaTheta’s proprietary wireless technology and is designed to transmit audio significantly faster than conventional Bluetooth SBC transmission, helping minimize audible monitoring delay.
Large Performance Pads
Large performance pads provide hands-on control for dynamic DJ techniques and responsive performance.
Three USB Inputs
Three USB connections support flexible performance setups:
- Two top-loading USB Type-A inputs for USB devices
- One USB Type-C connection for a laptop
The multiple USB inputs also support smooth back-to-back performances and DJ handovers.
Gate Cue Mode
The XDJ-AZ supports Gate Cue mode, allowing Hot Cues to play only while the corresponding performance pads are pressed.
AlphaTheta Care
The system is compatible with the AlphaTheta Care extended warranty service.
Specifications
Audio Performance
| Specification | Details |
|---|---|
| Frequency Response | 20 Hz – 20 kHz |
| S/N Ratio | 115 dB (USB) |
| Total Harmonic Distortion | 0.0018% (USB) |
Inputs
| Input | Quantity / Connection |
|---|---|
| LINE / PHONO | 2 x RCA |
| MIC | 2 x XLR & 1/4″ TRS Jack |
Outputs
| Output | Quantity / Connection |
|---|---|
| MASTER | 2 x — XLR x1, RCA x1 |
| BOOTH | 1 x 1/4″ TRS Jack |
| PHONES | 2 x — 1/4″ stereo Jack x1, 3.5 mm stereo mini jack x1 |
USB & Wired Connectivity
| Specification | Details |
|---|---|
| USB Type-A | 2 |
| USB Type-C | 1 |
| LAN | 1 x 100BASE-TX |
| PC/Mac Connection | USB Type-C |
| Connectivity | USB / LAN / Wireless |
Wireless Connectivity
| Specification | Details |
|---|---|
| Wireless LAN | IEEE 802.11 a/b/g/n/ac |
| Wi-Fi Frequency Bands | 2.4 GHz / 5 GHz |
| Bluetooth | Version 5.3 |
| Bluetooth Codecs | SBC, AAC |
| SonicLink Frequency | 2.4 GHz |
| SonicLink | Ultra-Low-Latency Wireless Monitoring |
Software Compatibility
| Software | Compatibility |
|---|---|
| rekordbox for Mac/Windows | Supported |
| rekordbox for iOS/Android | Supported |
| rekordbox Performance Mode | Supported |
| rekordbox Link Export | Supported |
| Serato DJ Pro | Supported |
| Standalone DJ Operation | Supported |
Software note: The supplied information states that Serato DJ Pro compatibility was scheduled for December 2024.
Power & Physical Specifications
| Specification | Details |
|---|---|
| Power Supply | AC 100 V, 50/60 Hz |
| Dimensions | 35.24 x 19.85 x 5.25 in |
| Dimensions (Metric) | 88.9 x 48.26 x 12.7 cm |
| Weight | 29.7 lb / 13.472 kg |
| Format | Standalone All-in-One DJ System |
Included Accessories
- Power Cord
- Quick Start Guide
- Precautions for Use
Ideal Applications
The AlphaTheta XDJ-AZ is well suited for:
- Professional DJ performances
- Club-style DJ setups
- Mobile DJ applications
- Home and studio DJ practice
- Back-to-back DJ performances
- DJ handovers
- rekordbox Performance mode
- Serato DJ Pro setups
- USB-based DJ performances
- Streaming-based DJ sets
- Turntable and sampler integration
Flexible Performance Connectivity
The XDJ-AZ is designed around flexibility. DJs can combine USB media, computers, mobile devices, streaming services, turntables, and samplers within their performance workflow.
Its combination of three USB inputs, USB Type-C computer connectivity, built-in Wi-Fi, Bluetooth 5.3, LAN connectivity, and SonicLink wireless monitoring provides multiple options for building a personalized DJ setup.
Professional Wireless Monitoring
With the integrated SonicLink transmitter and compatible HDJ-F10 headphones, the XDJ-AZ can provide wireless monitoring designed specifically for DJ performance. This can help eliminate headphone cable restrictions while maintaining low-latency monitoring during mixing and scratching.
Why Choose the AlphaTheta XDJ-AZ?
The AlphaTheta XDJ-AZ combines a club-inspired layout with modern connectivity and media flexibility. Its built-in Wi-Fi, StreamingDirectPlay compatibility, three USB inputs, rekordbox and Serato DJ Pro support, large performance pads, Gate Cue mode, and SonicLink wireless monitoring make it a versatile all-in-one platform for DJs who want multiple ways to access and perform with their music.
