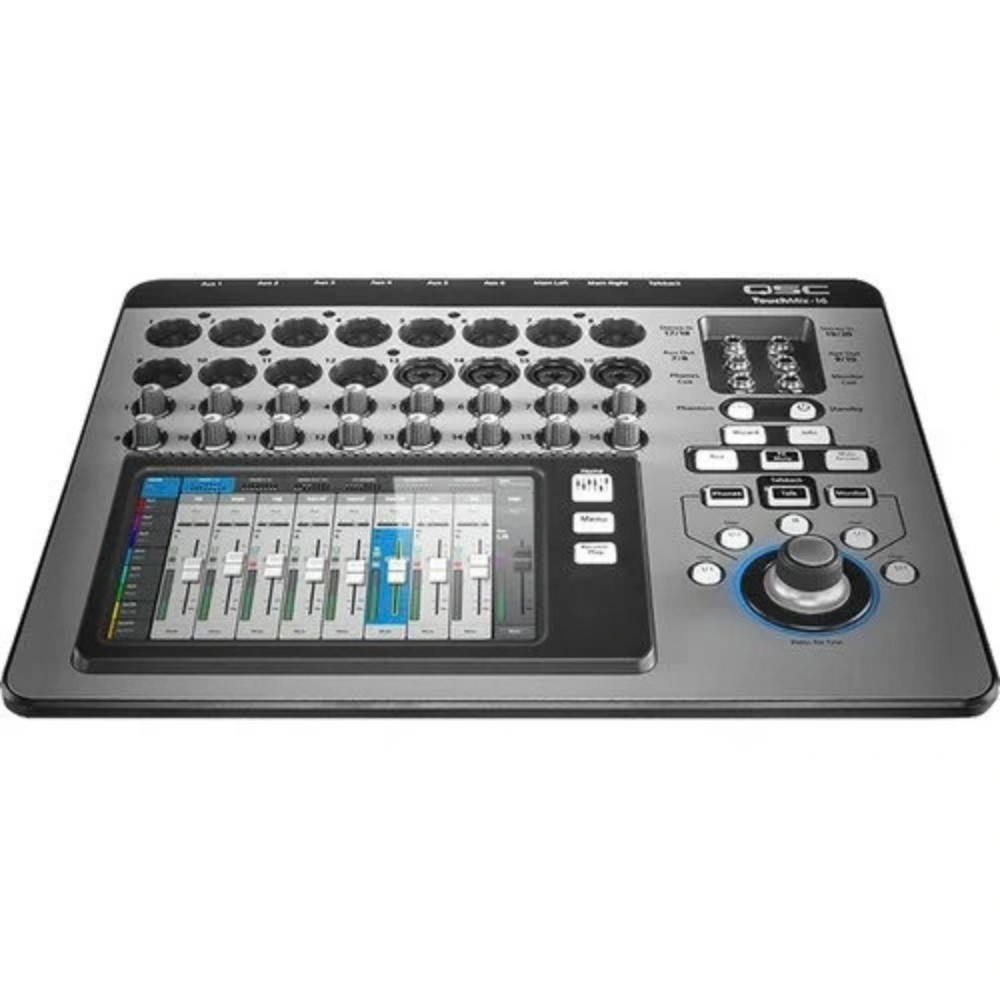

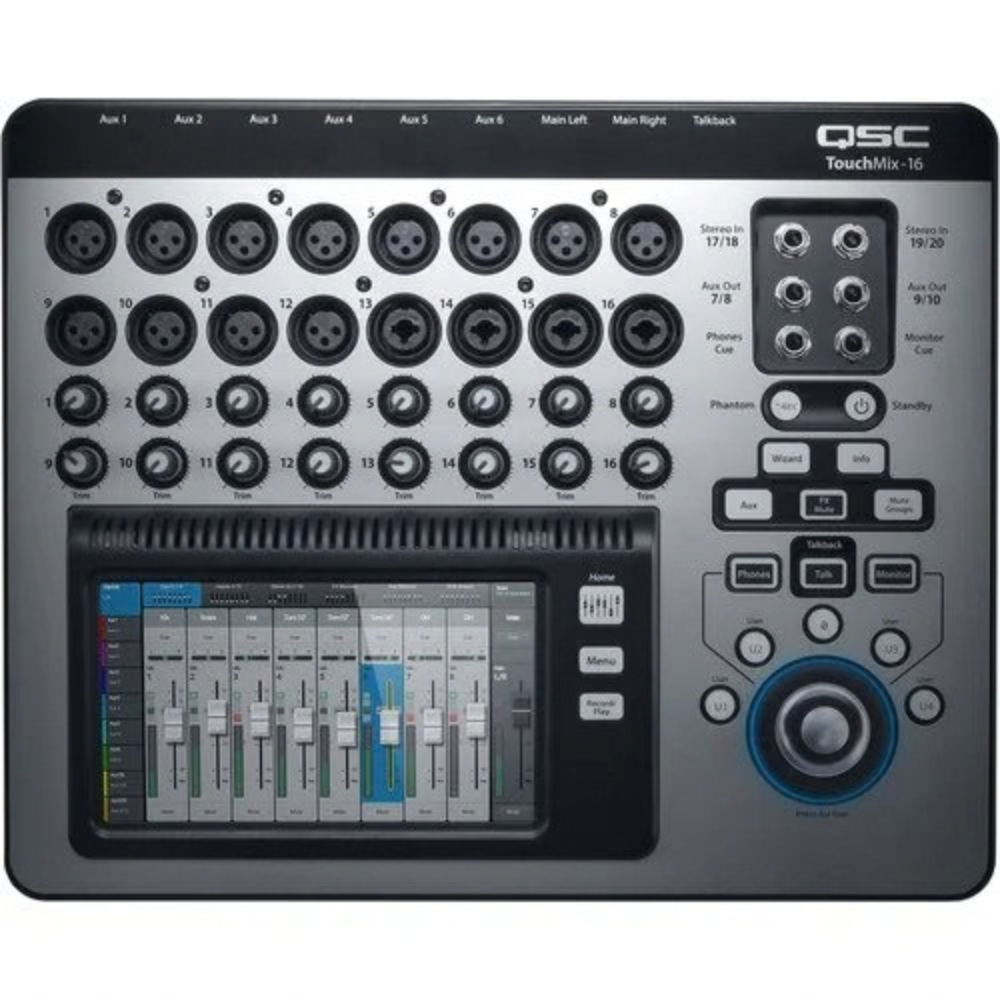

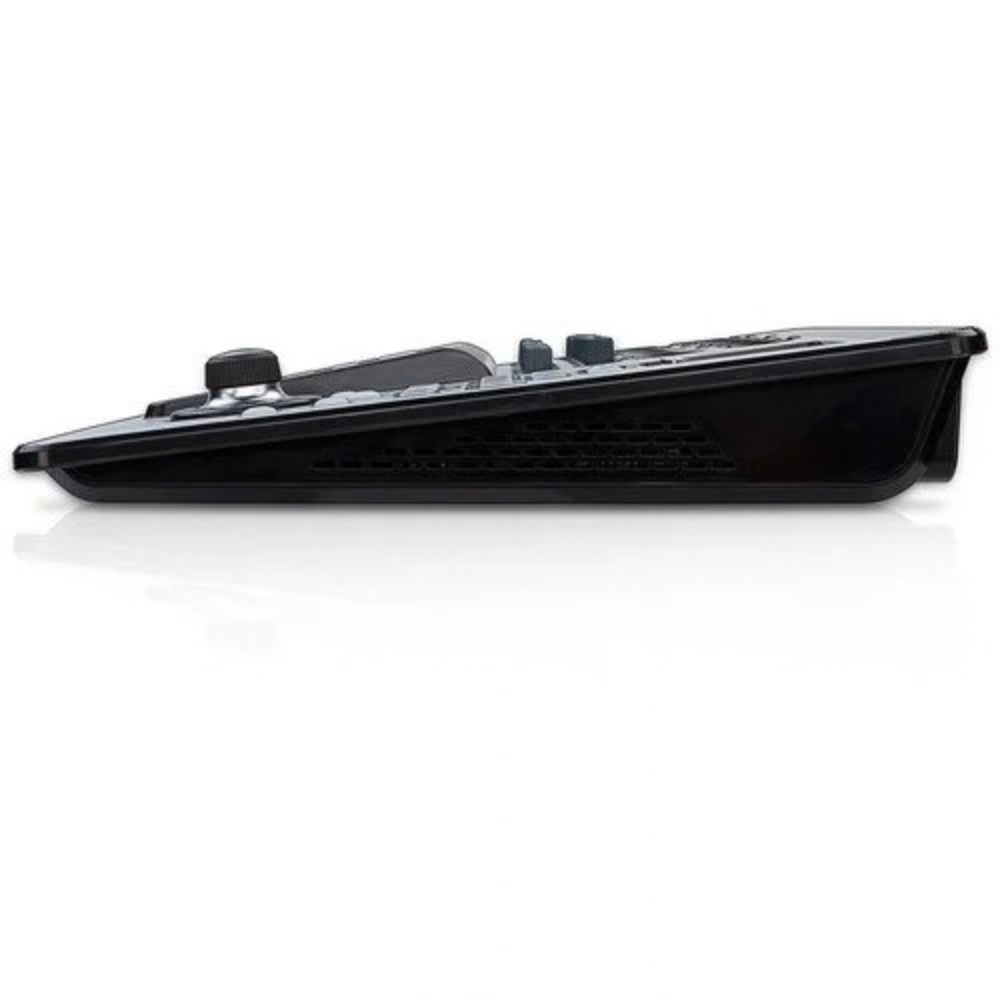

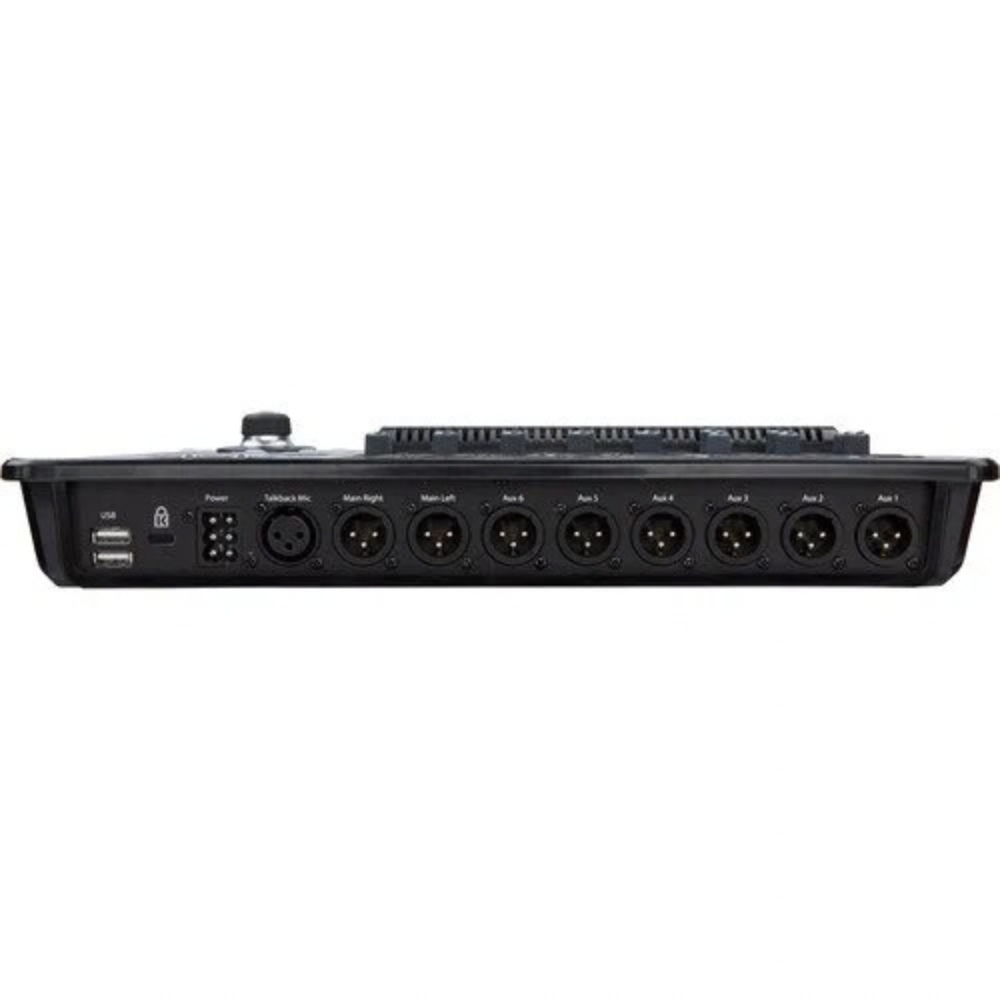

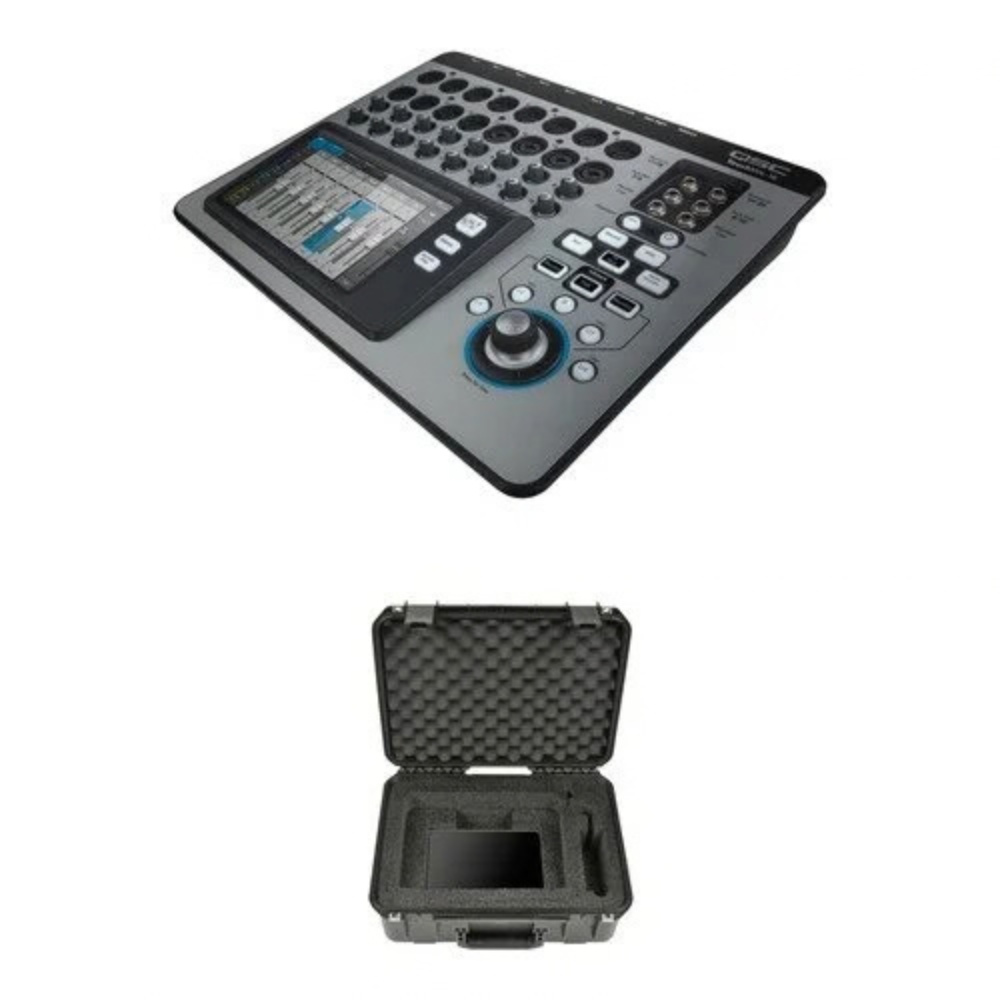

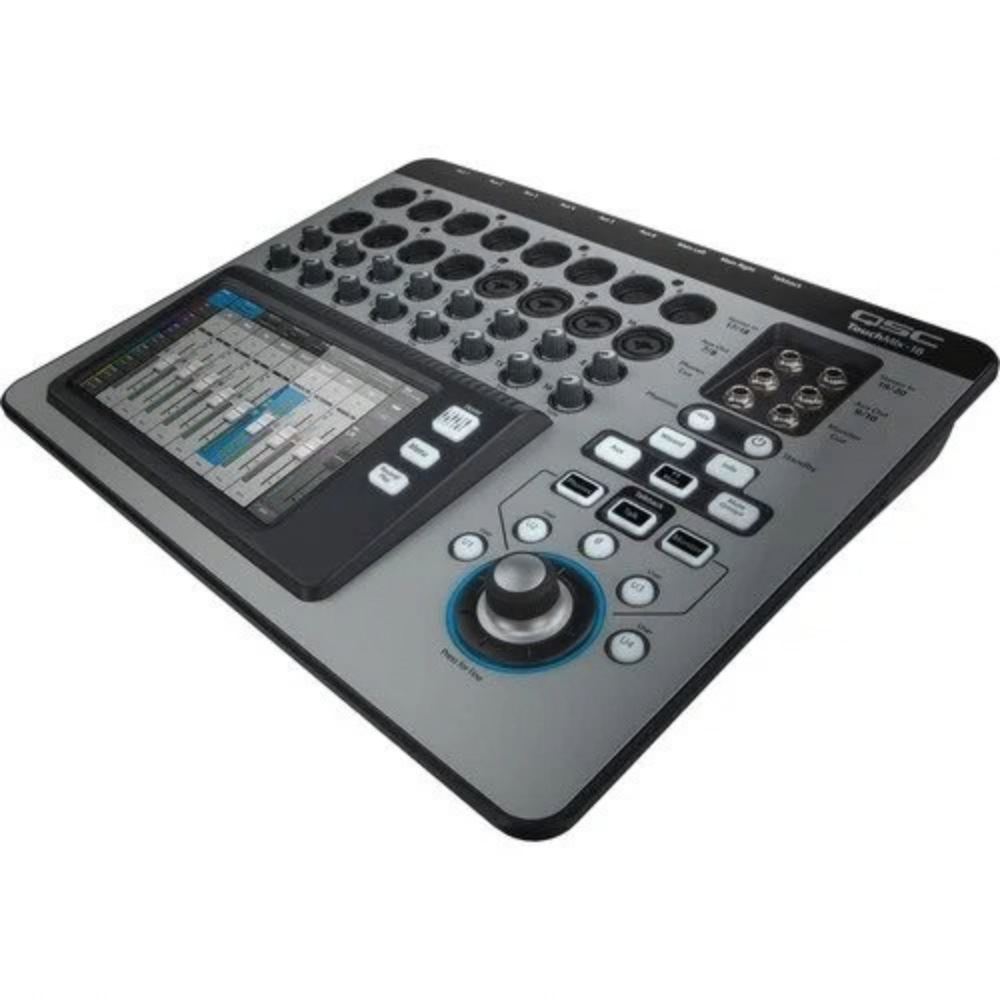

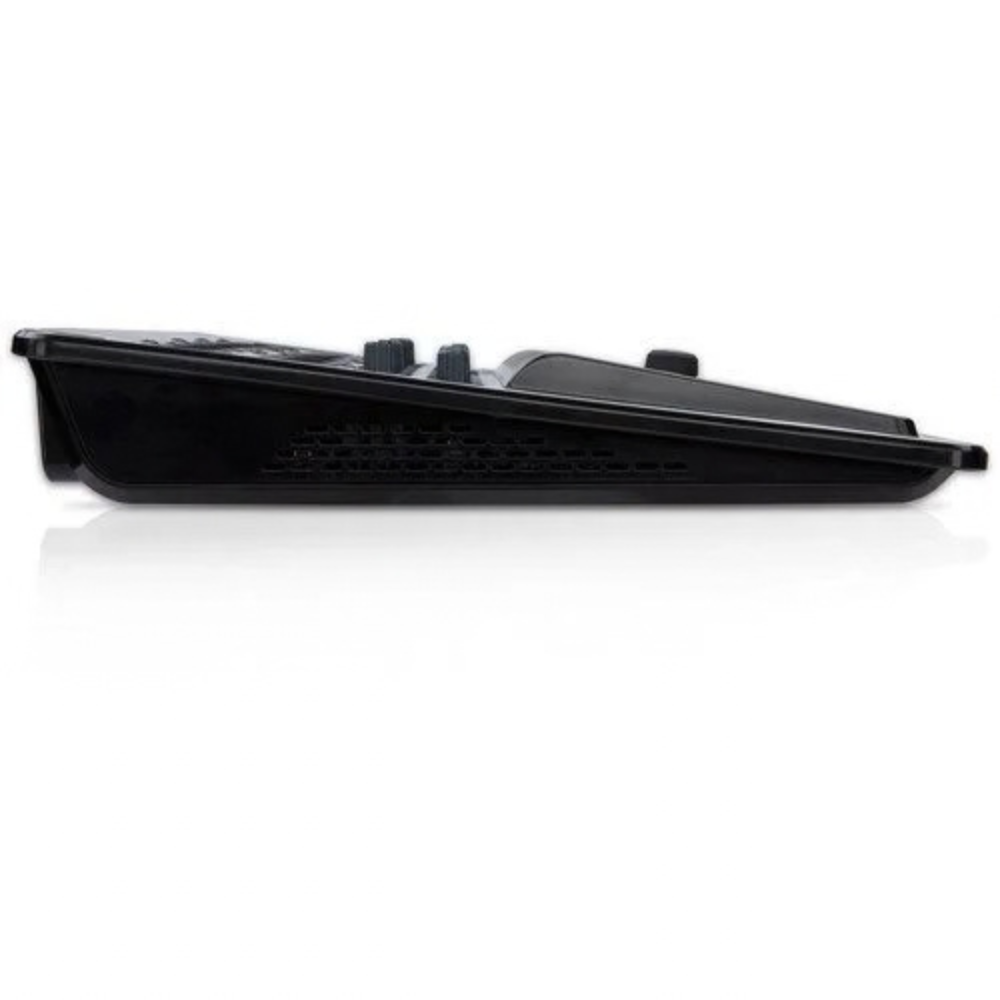

QSC TouchMix-16 Compact Digital Mixer with SKB iSeries Watertight Road Case Kit

QSC TouchMix-16 Compact Digital Mixer with SKB iSeries Watertight – pro-grade performance and reliable quality for home, studio or office.

QSC TouchMix-16 Compact Digital Mixer with SKB iSeries Watertight Road Case Kit

Complete Portable Live Sound Mixing Solution with Rugged Watertight Protection

Build a dependable live sound reinforcement system with the QSC TouchMix-16 Compact Digital Mixer with Touchscreen and SKB iSeries Watertight TouchMix Case. This complete kit combines a powerful 20-input digital mixer with a custom-fit protective road case designed to shield your equipment from the demands of transportation and touring.

The TouchMix-16 provides extensive digital mixing, processing, recording, and wireless control capabilities in a compact format. Its integrated capacitive touchscreen and hardware controls allow fast operation, while an included Wi-Fi interface enables remote control from compatible mobile devices.

The accompanying SKB watertight case uses a custom foam interior designed to accommodate the TouchMix-16, along with space for the power supply and an iPad or iPad mini.

Key Features

QSC TouchMix-16 Digital Mixer

20 Full-Function Inputs

The TouchMix-16 provides 20 full-function inputs for flexible live sound setups, including microphone, line-level, stereo, talkback, and USB connectivity.

Input configuration includes:

• 12 Mic inputs
• 4 Mic/Line inputs with XLR/TRS combination connectors
• 2 Stereo Line inputs with TRS connections
• 1 Talkback input with XLR
• USB 2-track connectivity

Integrated Touchscreen Control

A color, capacitive touchscreen provides a graphical user interface for controlling the mixer. Hardware controls work alongside the touchscreen for fast access to important mixing functions.

Wireless iPad Control

The mixer can be controlled wirelessly using an iPad connected to the same wireless network. A USB Wi-Fi adapter/interface is included for remote operation.

Comprehensive Channel Processing

Each input channel features extensive DSP processing, including:

• 4-band full parametric EQ
• Variable high-pass filter
• Variable low-pass filter
• Gate
• Compressor

Built-In Effects

The TouchMix-16 includes four stereo DSP effects and a pitch corrector, with effects capabilities including:

• Reverb
• Echo
• Delay
• Chorus
• Pitch correction

Output Processing

Main and Aux outputs feature additional processing tools, including:

• 1/3-octave graphic equalization
• Limiters
• Delay
• Notch filters

DCA & Mute Groups

Eight DCA groups and eight Mute groups provide convenient control over multiple channels and functions during live performances.

Direct Multi-Track Recording

The TouchMix-16 can record and play back multi-track WAV files directly to an optional external USB hard drive.

It can record all input channels plus a user-selected stereo output pair, with sampling rates up to 48 kHz.

IEM-Ready Aux Outputs

The TRS Aux outputs can drive wired in-ear monitors (IEMs) directly, providing a practical monitoring solution for performers.

Output Configuration

The TouchMix-16 provides multiple output options for connecting speakers, monitors, cue systems, and other live sound equipment.

QSC TouchMix-16 Specifications

SKB iSeries Watertight TouchMix Case

Custom-Fit Mixer Protection

The SKB iSeries Watertight TouchMix Case is designed specifically to protect QSC TouchMix-8 and TouchMix-16 digital mixers during transportation and storage.

Its removable foam sections allow the case to accommodate either mixer model, while a custom cutout provides dedicated space for the power supply.

Flexible Interior Storage

The case also provides room for an iPad or iPad mini, making it possible to transport the mixer, power supply, and remote-control device together.

Watertight Construction

A complete gasket seal provides watertight protection, while automatic ambient pressure equalization helps manage pressure changes during transportation.

Durable Protective Materials

The case is constructed from polypropylene copolymer resin and is designed to resist UV exposure, solvents, corrosion, and fungus.

Professional Touring Features

The case incorporates several features intended for frequent transportation, including:

• Molded-in hinges
• Rubber over-molded cushion-grip handle
• Locking loops for a user-supplied lock
• Patented trigger-release latch system
• Custom-cut PE foam
• Removable foam section for TouchMix-16
• Dedicated power-supply space
• iPad/iPad mini storage space

SKB Case Specifications

Complete Touring & Live Sound Solution

This kit combines the functionality of the QSC TouchMix-16 with the protective capabilities of the SKB iSeries Watertight Case, creating a practical solution for mobile sound reinforcement.

The mixer provides extensive input processing, effects, monitoring, wireless control, and multi-track recording, while the case is designed to protect the equipment during transport.

Ideal Applications

This system is well suited for:

• Live sound reinforcement
• Touring and mobile production
• Concerts and performances
• Houses of worship
• Corporate events
• Theater productions
• Bands and performing groups
• Portable recording setups
• DJ and event production
• Professional sound-system transport

Why Choose the QSC TouchMix-16 with SKB Watertight Case?

The QSC TouchMix-16 and SKB iSeries Watertight Case Kit combines a feature-rich digital mixer with purpose-built transportation protection. With 20 inputs, 16 built-in mic preamplifiers, comprehensive DSP processing, four stereo effects, pitch correction, multi-track recording, wireless iPad control, and multiple monitoring outputs, the TouchMix-16 provides extensive capabilities for live production.

The custom-fit SKB case adds watertight construction, protective PE foam, pressure equalization, environmental resistance, and storage for an iPad and power supply, making the kit particularly practical for mobile and touring applications.
