Titan Attachment Snow Blowesr Category 1 – built for American yards, with dependable power and easy handling for every season.

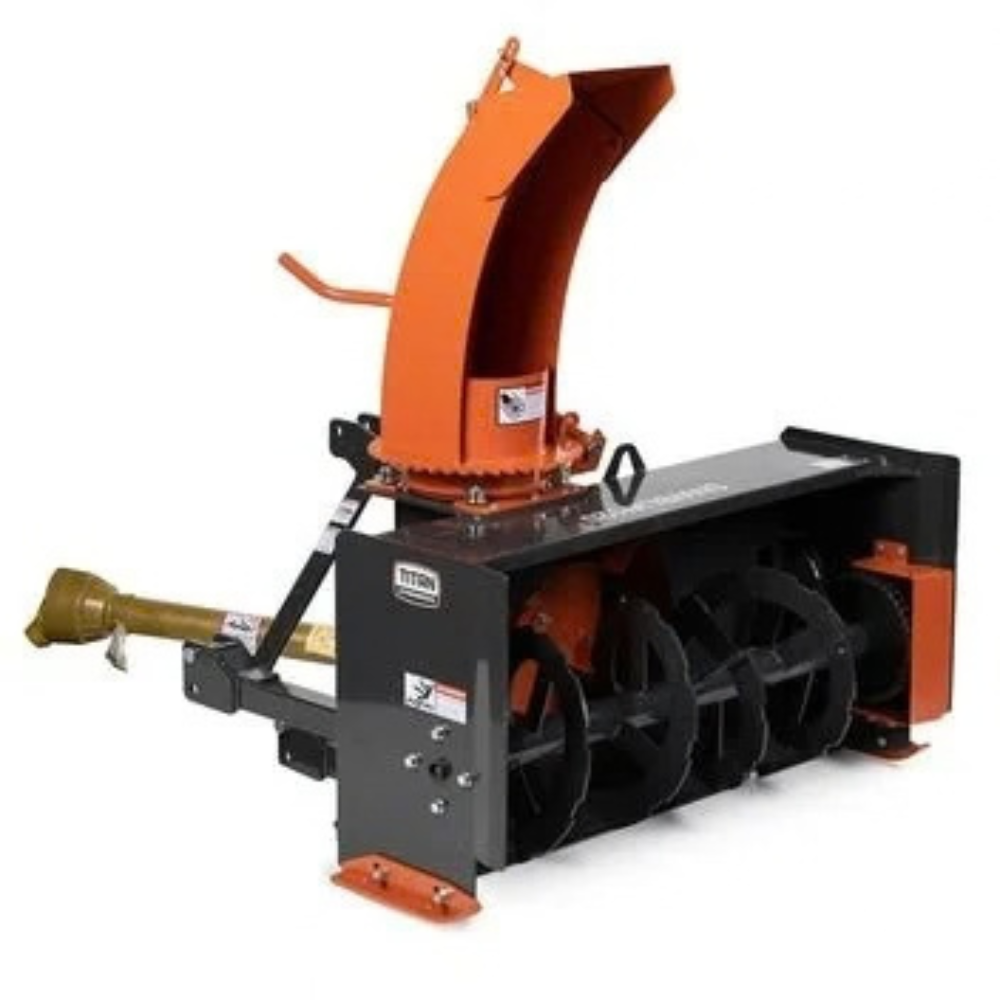

47-Inch 3-Point PTO Snow Blower Attachment
Heavy-Duty Steel Construction, 540 RPM PTO & 180° Manual Chute Rotation

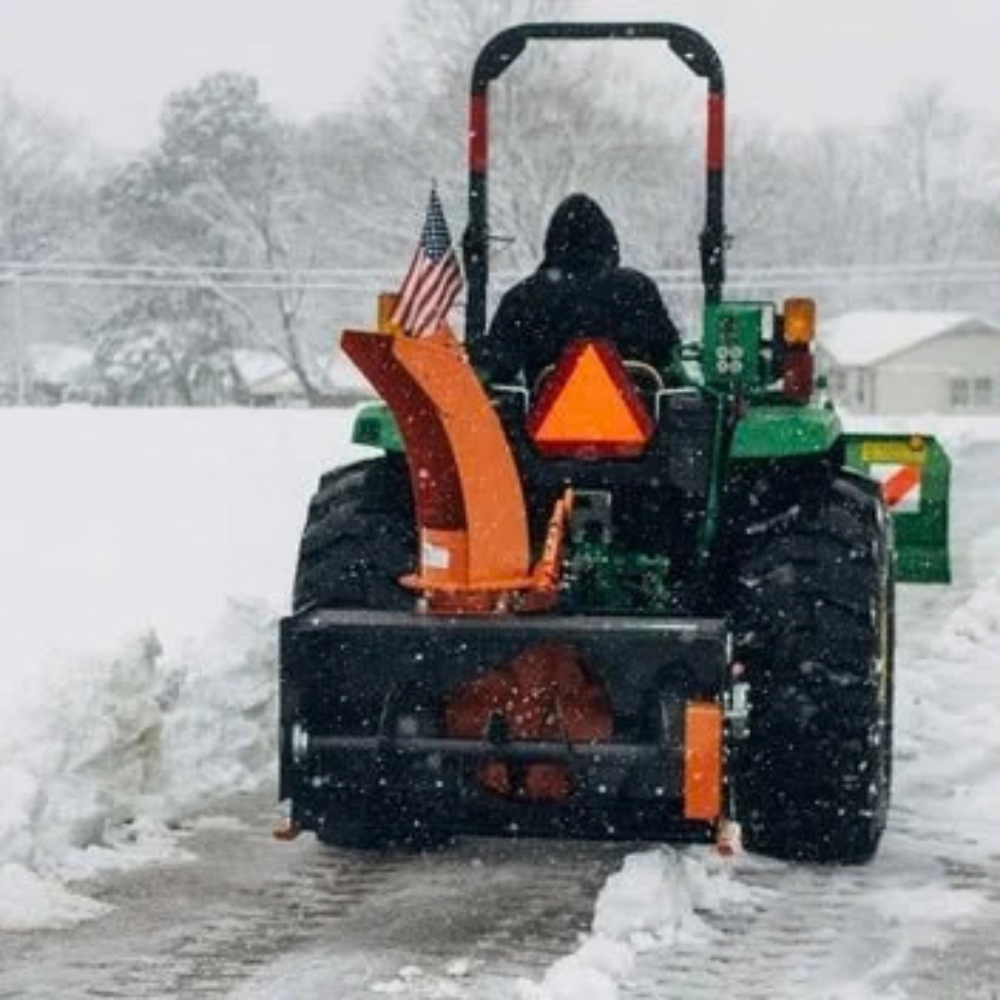

Clear heavy snow quickly and efficiently with this 47-inch 3-Point PTO Snow Blower Attachment, designed for Category 1 and Category 3 three-point hitch tractors. Built for sidewalks, parking lots, driveways, and demanding winter conditions, this snow blower combines durable steel construction with a powerful PTO-driven snow-clearing system.
The heavy-duty steel ribbon auger feeds snow into a four-blade fan, while the robust chain-and-sprocket drive and gearbox efficiently transfer tractor PTO power to the blower. A 180-degree rotating manual hand-crank chute provides directional control, while adjustable steel skid shoes help maintain the desired operating height over different surfaces.
Designed for tractors with a minimum of 20 HP, the unit operates at the standard 540 RPM PTO speed and includes a shear-bolt PTO shaft for direct power take-off connection.
Key Features
47-Inch Cutting Width
The 47-inch cutting width provides substantial snow-clearing coverage, making the attachment suitable for sidewalks, parking areas, driveways, and other larger snow-removal applications.
3-Point Hitch Compatibility
Designed for Category 1 and Category 3 three-point hitch tractors, providing broad tractor compatibility for PTO-powered snow removal.
PTO-Powered Performance
The snow blower connects directly to the tractor’s PTO system using the included shear-bolt PTO shaft. The 540 RPM PTO transfers power through the gearbox to the fan for effective snow discharge.
Heavy-Duty Steel Ribbon Auger
A 15.5-inch steel ribbon auger efficiently gathers and feeds snow toward the fan assembly. The 0.3-inch auger thickness provides a durable design for demanding winter conditions.
Four-Blade Fan
The four-blade fan helps move snow through the blower and direct it toward the discharge chute. The fan features a 19-inch diameter and 3/16-inch blade thickness.

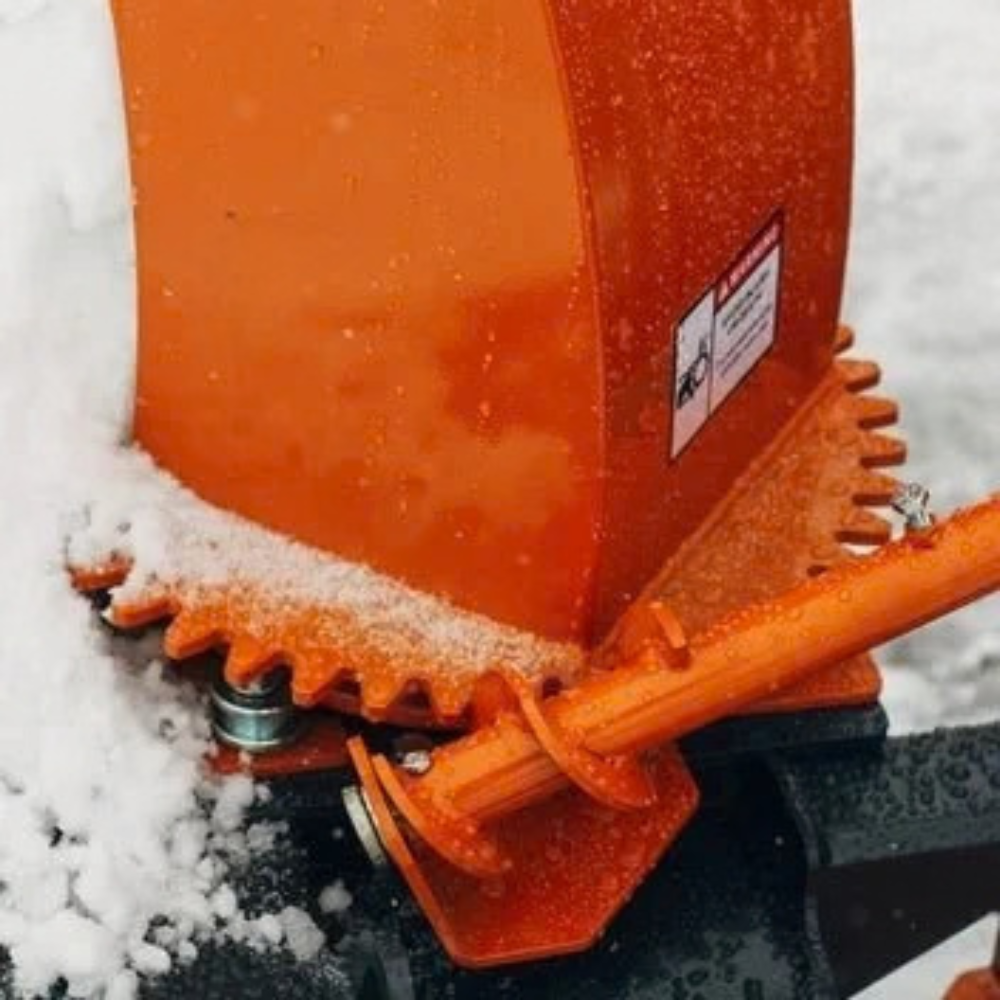

180° Manual Chute Rotation
The manual hand-crank chute rotates through 180 degrees, allowing the operator to direct discharged snow where needed.
Adjustable Steel Skid Shoes
Heavy-duty adjustable steel skid shoes help control the blower’s operating height and provide clearance between the attachment and the ground surface.
Chain & Sprocket Drive
A robust 1-inch roller chain drive transfers power through the snow blower assembly for dependable operation.
Durable Powder-Coated Finish
The snow blower is constructed from 3/16-inch steel and finished in a powder-coated grey and orange finish for added durability.
Specifications
General Specifications
| Specification | Details |
|---|---|
| Product Type | 3-Point PTO Snow Blower Attachment |
| Cutting Width | 47 in. |
| Overall Height | 56 in. |
| Overall Depth | 43 in. |
| Product Weight | 580 lb. |
| Material | 3/16 in. Steel |
| Finish | Powder-Coated Grey/Orange |
| Tractor Power Requirement | Minimum 20 HP |
| Compatible Hitch | Category 1 & Category 3, 3-Point Hitch |
Auger & Fan
| Specification | Details |
|---|---|
| Auger Diameter | 15.5 in. |
| Auger Thickness | 0.3 in. |
| Auger Type | Heavy-Duty Steel Ribbon Auger |
| Fan Type | 4-Blade |
| Fan Blade Diameter | 19 in. |
| Fan Blade Thickness | 3/16 in. |
| Fan Material | Steel |
Chute
| Specification | Details |
|---|---|
| Chute Diameter | 9 in. |
| Chute Rotation | 180° |
| Chute Control | Manual Hand Crank |
Drive & PTO
| Specification | Details |
|---|---|
| PTO Type | Shear-Bolt PTO |
| PTO Speed | 540 RPM |
| Drive System | Chain & Sprocket |
| Chain Type | Roller Chain |
| Chain Size | 12A |
| Chain Width | 1 in. |
| Power Transfer | Gearbox-Driven Fan |
Recommended Applications
This 47-inch PTO snow blower attachment is well suited for:
- Sidewalk snow removal
- Parking lots
- Driveways
- Private roads
- Farm and rural properties
- Commercial properties
- Heavy winter conditions
- Tractor-based snow-clearing operations
Package Includes
- 47-inch 3-Point PTO Snow Blower Attachment
- Shear-Bolt PTO Shaft
- Manual hand-crank chute system
- Adjustable steel skid shoes
Why Choose the 47-Inch 3-Point PTO Snow Blower?
The 47-Inch 3-Point PTO Snow Blower Attachment combines a wide clearing path, heavy-duty steel construction, tractor-powered operation, and adjustable snow discharge in a robust attachment designed for demanding winter work. With a 15.5-inch ribbon auger, four-blade 19-inch fan, 540 RPM PTO operation, and 180-degree manual chute rotation, it provides an efficient solution for clearing snow with compatible Category 1 or Category 3 tractors.
