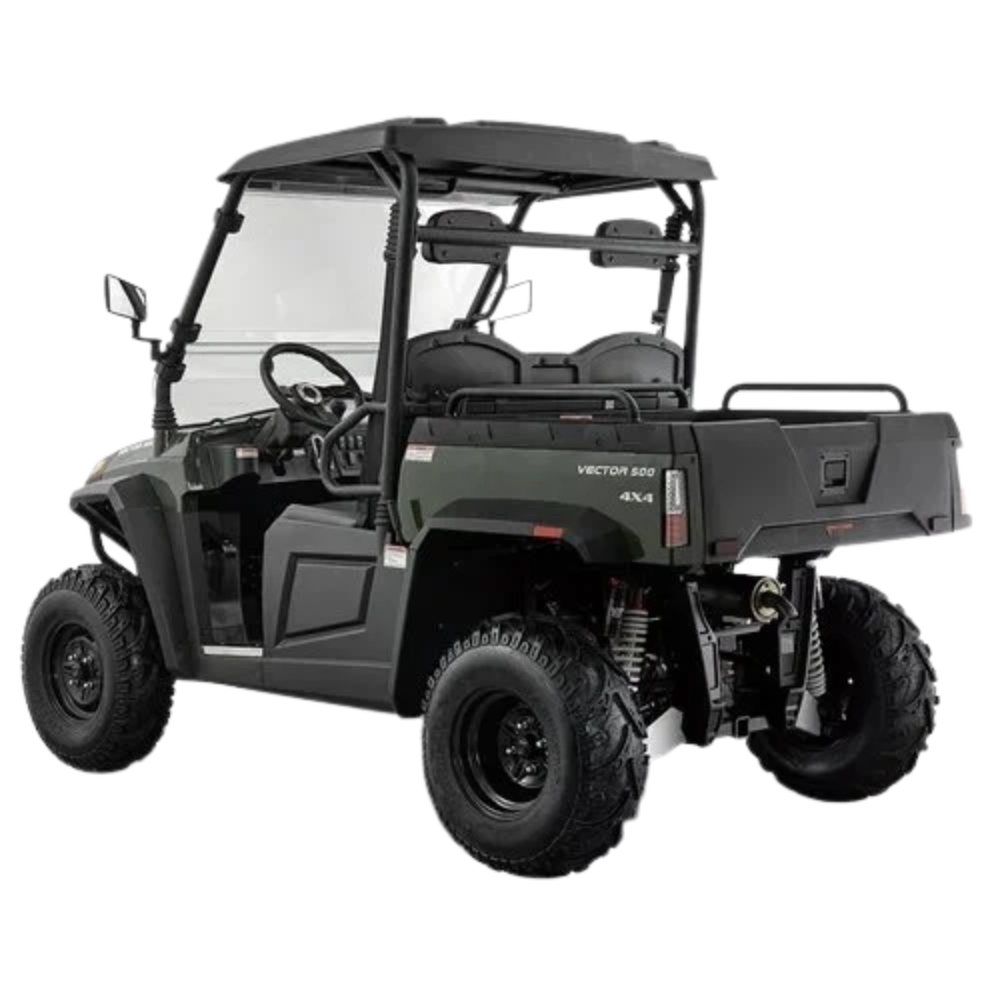

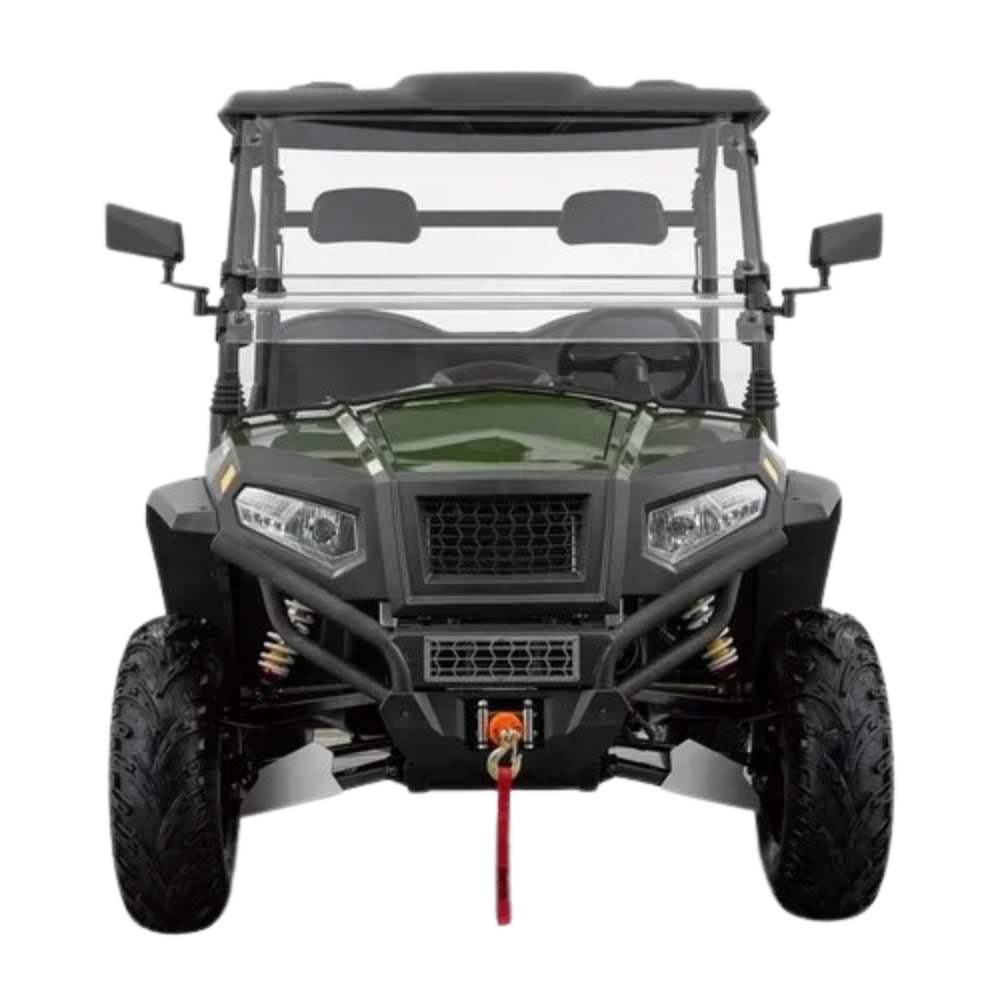

Vector 500 4WD UTV
Vector 500 4WD UTV
Vector 500 4WD UTV – backyard and outdoor fun for the whole family, built tough for years of use.
The New Vector 500 Camo Utility Vehicle brings true powersports performance to a versatile off-road platform. Powered by a 471cc fuel-injected four-stroke engine producing an estimated 20 HP, the Vector 500 can reach a listed maximum forward speed of 45 mph.
Built for hunting, work, and off-road adventures, the Vector 500 Camo features on-demand four-wheel drive with a front differential lock, Hi/Lo range automatic CVT transmission, large 26-inch tires, and shaft-driven 4WD. Its race-inspired Level Flight Suspension system with nitrogen-assisted shocks is designed to provide controlled performance over uneven terrain.
Standard equipment includes a 3,500 lb. winch, removable two-piece windshield, roof, headlights, tail lights, turn signals, mirrors, fender flares, headrests, and front bumper, giving the Vector 500 a comprehensive utility package straight from the factory.
Key Features
471cc Fuel-Injected Engine
The Vector 500 is powered by a 471cc gasoline engine designed to deliver strong off-road performance.
- 471cc fuel-injected four-stroke engine
- Estimated 20 HP
- Maximum listed torque: 16.15 ft-lb
- Gasoline fuel
- 7.6-gallon fuel tank
- OEM-branded engine
Automatic Hi/Lo CVT Transmission
The automatic CVT provides convenient operation while the selectable Hi/Lo range allows the drivetrain to be configured for different riding and utility conditions.
- Automatic CVT transmission
- High/Low range
- Designed for work and off-road applications
On-Demand 4-Wheel Drive
The Vector 500 provides selectable traction through its on-demand 4WD system.
- On-demand 4-wheel drive
- Front differential lock
- Shaft-driven 4WD system
- 10-inch ground clearance
Level Flight Suspension
A race-inspired Level Flight Suspension system combines independent suspension components with nitrogen-assisted shocks to help the vehicle maintain controlled handling over uneven terrain.
- Independent 4-wheel dual A-arm suspension
- Nitrogen-assisted shocks
- Level Flight Suspension system
- 10-inch ground clearance
26-Inch All-Terrain Tires
Large 26-inch tires provide the ground contact needed for outdoor trails, hunting areas, and off-road work.
- 26-inch tires
- Independent 4-wheel suspension
- 10-inch ground clearance
Four-Wheel Hydraulic Disc Brakes
Hydraulic disc brakes on all four wheels provide controlled braking performance for a utility vehicle capable of reaching up to 45 mph.
- 4-wheel hydraulic disc brakes
- Designed for off-road use
Standard Winch & Utility Equipment
The Vector 500 Camo comes equipped with a substantial range of standard accessories.
- 3,500 lb. winch
- Front bumper
- Fender flares
- Mirrors
- Headrests
- Cup holder
- 2-piece removable windshield
- Roof
- On-road light package
Cargo & Towing Capability
The Vector 500 is designed to handle both passengers and utility equipment.
- 2-person seating capacity
- 8.3 cu. ft. cargo bed capacity
- Tilting cargo bed
- 500 lb. load weight capacity
- 3,500 lb. listed towing capacity
Specifications
Engine & Performance
| Specification | Details |
|---|---|
| Engine Displacement | 471cc |
| Engine Type | Fuel-Injected 4-Stroke |
| Engine Make | OEM Branded Engine |
| Horsepower | 20 HP |
| Maximum Torque | 16.15 ft-lb |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 7.6 gal |
| Maximum Forward Speed | 45 mph |
| Transmission | Automatic CVT |
| Range | Hi/Lo |
| Drive System | On-Demand 4-Wheel Drive |
| Front Differential Lock | Yes |
| Driveline | Shaft Drive |
Suspension, Brakes & Tires
| Specification | Details |
|---|---|
| Suspension | Independent 4-Wheel Dual A-Arm |
| Shock Type | Nitrogen Assisted |
| Suspension System | Level Flight Suspension |
| Brakes | 4-Wheel Hydraulic Disc |
| Tires | 26 in. |
| Ground Clearance | 10 in. |
Dimensions & Capacity
| Specification | Details |
|---|---|
| Overall Length / Depth | 110 in. |
| Overall Width | 61.75 in. |
| Overall Height | 73 in. |
| Seat Height | 34 in. |
| Wheelbase | 76.75 in. |
| Turning Radius | 13 ft |
| Seating Capacity | 2 |
| Cargo Bed Capacity | 8.3 cu. ft. |
| Load Weight Capacity | 500 lbs. |
| Towing Capacity | 3,500 lbs. |
| Product Weight | 1,300 lbs. |
| Fuel Capacity | 7.6 gal |
Standard Equipment
| Equipment | Included |
|---|---|
| Canopy / Roof | Yes |
| Windshield | Yes |
| Removable Windshield | 2-Piece |
| Winch | 3,500 lbs. |
| Headlights | Yes |
| Tail Lights | Yes |
| Turn Signals | Yes |
| Mirrors | Yes |
| Fender Flares | Yes |
| Headrests | Yes |
| Front Bumper | Yes |
| Cup Holder | Yes |
| Tilting Cargo Bed | Yes |
| Cruise Control | No |
| Tow Hitch Included | No |
| Assembly Required | No |
Utility & Off-Road Applications
The Vector 500 Camo is designed for a variety of outdoor and utility applications, including:
- Hunting
- Off-road adventures
- Trail riding
- Property maintenance
- Outdoor work
- Utility transportation
- Recreational riding
Camo Finish & Outdoor Design
Finished in a Camo color scheme, the Vector 500 is styled for outdoor environments and utility-focused use. The roof, removable windshield, mirrors, fender flares, lighting package, and front bumper provide a practical configuration for extended outdoor operation.
Warranty
The Vector 500 Camo comes with a 2-year manufacturer warranty.
Why Choose the Vector 500 Camo?
The Vector 500 Camo Utility Vehicle combines a 471cc fuel-injected engine, automatic Hi/Lo CVT, on-demand 4WD with front differential lock, independent dual A-arm suspension, nitrogen-assisted shocks, and four-wheel hydraulic disc brakes into a capable off-road platform.
With a 3,500 lb. winch, 3,500 lb. listed towing capacity, tilting cargo bed, 500 lb. load capacity, 7.6-gallon fuel tank, 26-inch tires, roof, removable windshield, and complete lighting package, the Vector 500 is equipped for hunting, work, and recreational off-road use right from the factory.
