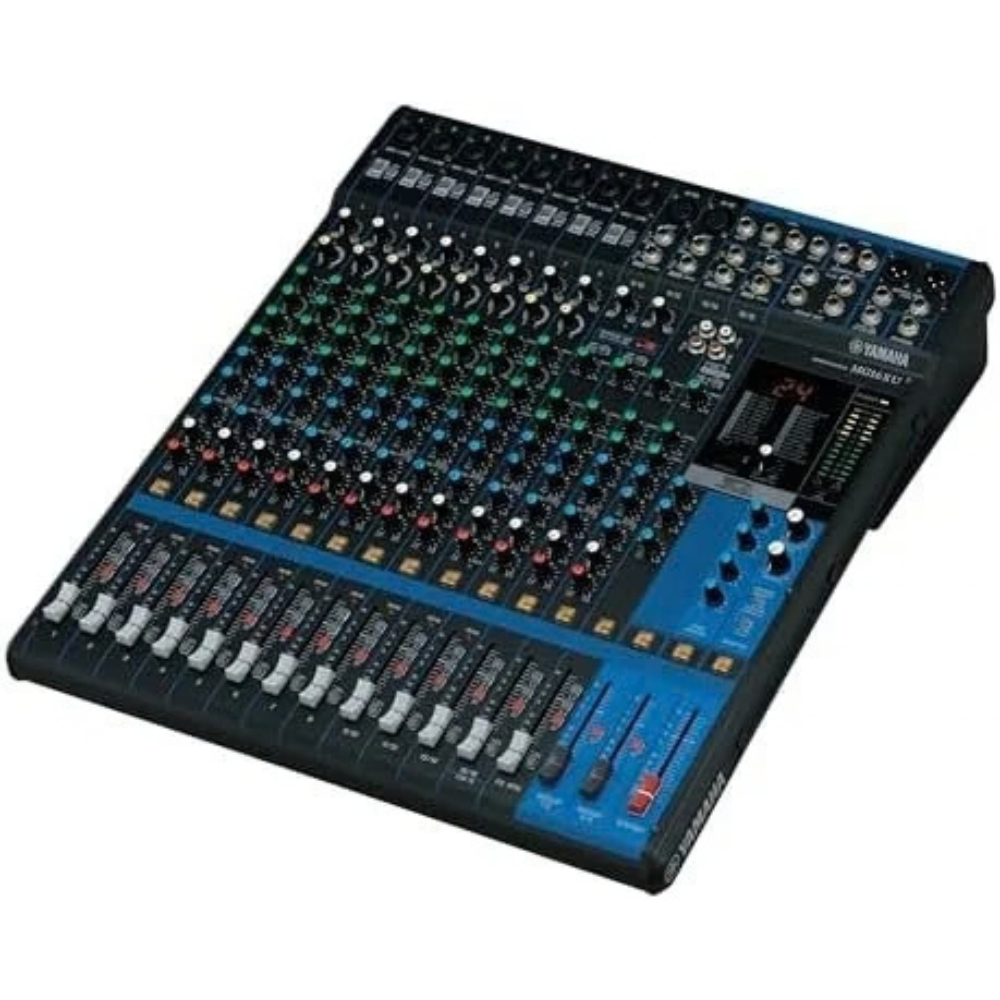

Yamaha MG16XU 16-Channel Mixer
Yamaha MG16XU 16-Channel Mixer
Yamaha MG16XU 16-Channel Mixer – pro-grade performance and reliable quality for home, studio or office.
Yamaha MG16XU 16-Channel Mixer
Professional Mixing with D-PRE Preamps, USB Audio & SPX Digital Effects
The Yamaha MG16XU is a 16-channel analog mixer designed for live sound, recording, rehearsal, and production applications. It combines studio-grade Class-A D-PRE microphone preamps, USB connectivity, SPX digital effects, 3-band EQ, high-pass filters, and 1-knob compressors in a rugged, impact-resistant chassis.
With support for up to 16 line inputs and 10 microphone inputs, the MG16XU provides flexible connectivity for bands, performers, venues, studios, and other professional audio setups.
Key Features
16-Channel Mixing
The MG16XU provides a flexible 16-channel configuration, supporting a broad range of microphones, instruments, and line-level sources.
Its connectivity includes:
- 16 line inputs
- Up to 10 mic inputs
- 8 combination input jacks
- 2 XLR inputs
- USB connectivity
Studio-Grade D-PRE Microphone Preamps
Yamaha’s Class-A D-PRE microphone preamps use an inverted Darlington circuit design to provide a natural, detailed sound with full low frequencies and smooth high-frequency response.
The preamps are designed to preserve the character of connected microphones and instruments while providing a clean foundation for the mix.

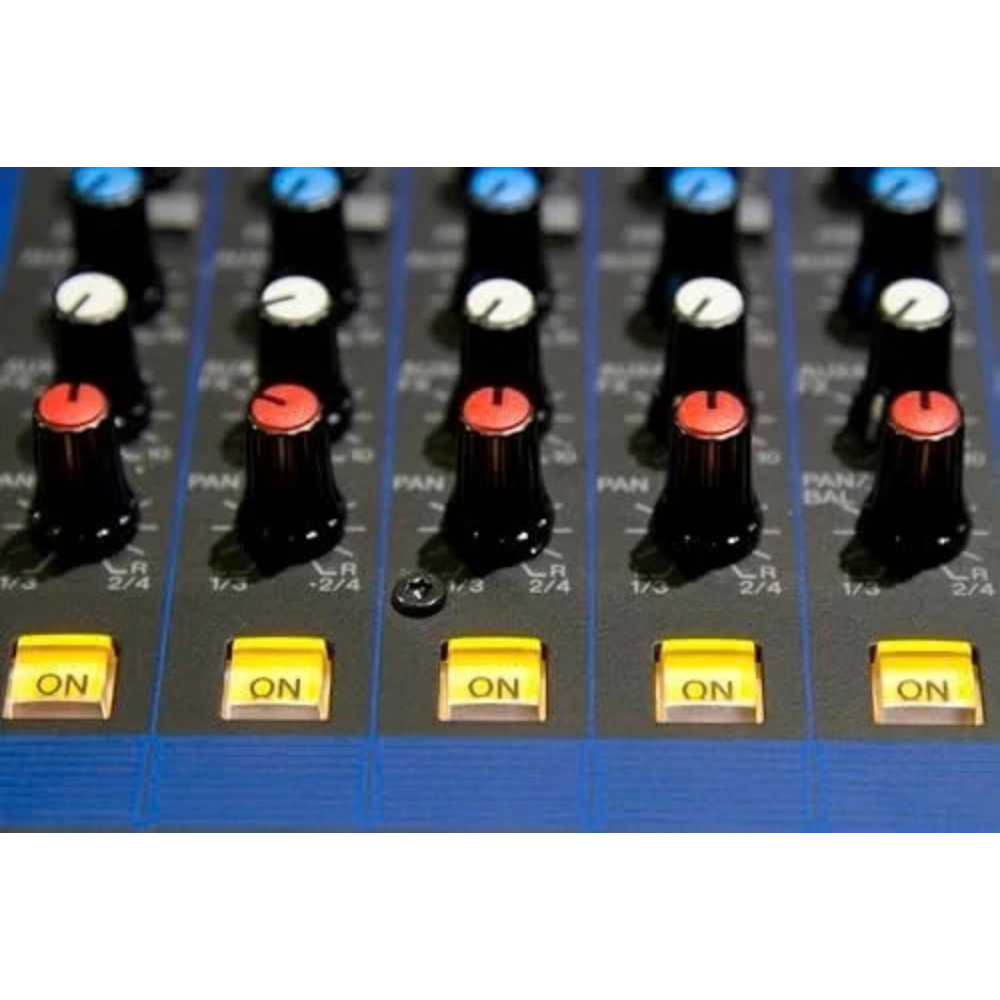

3-Band EQ & High-Pass Filters
Each channel features practical tone-shaping controls, including:
- 3-band EQ
- High-pass filters
- Noise-reduction control
- Hands-on signal shaping
These tools provide greater control over individual sources and help create a cleaner overall mix.
1-Knob Compressors
The integrated 1-knob compressors provide simple, accessible dynamics control without requiring complicated compressor settings.
They can help achieve:
- Livelier guitar sounds
- Punchier bass lines
- Tighter snare sounds
- Cleaner vocals
SPX Digital Effects
The MG16XU incorporates SPX digital effects, providing onboard processing for enhancing vocals, instruments, and overall mixes without requiring separate external effects equipment.
USB Audio Connectivity
USB connectivity allows the mixer to interface with compatible computer-based audio systems for recording and production workflows.

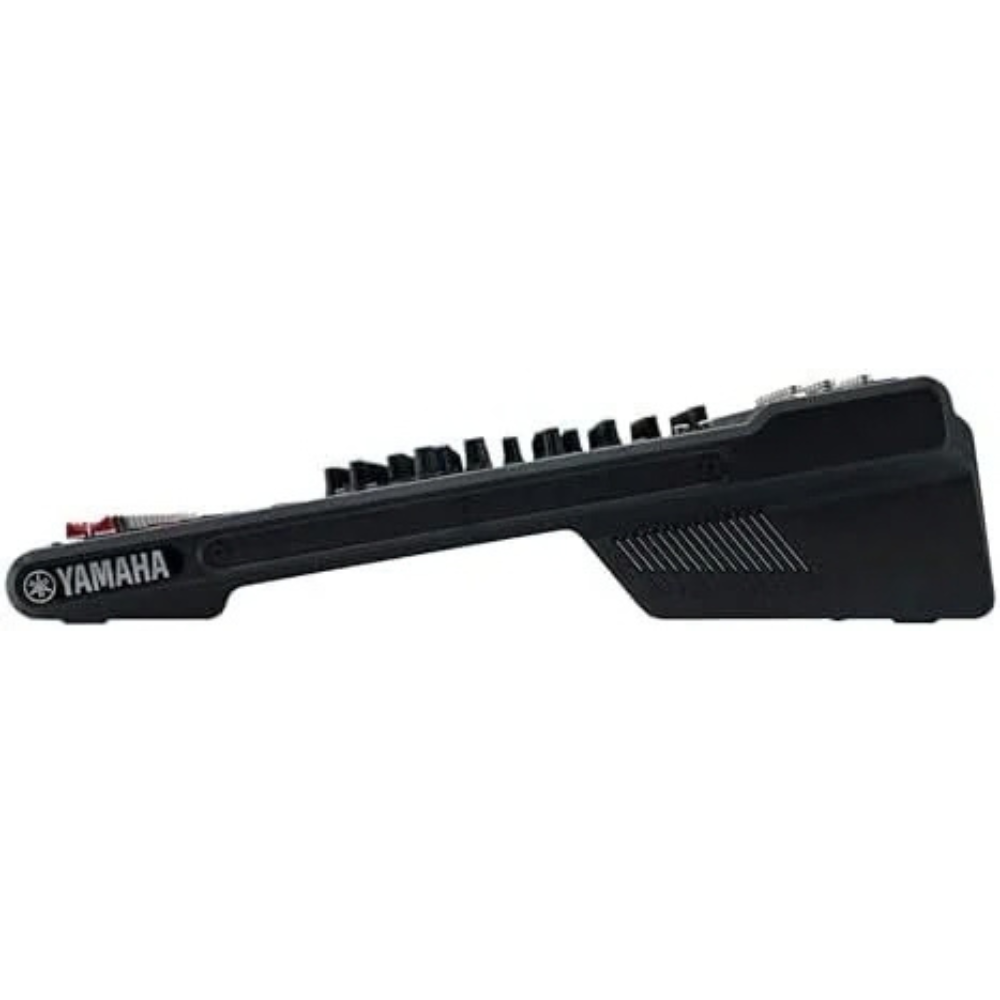

Rugged Metal Construction
The MG Series features a rugged, impact-resistant, powder-coated metal chassis, providing durable construction for demanding live and mobile applications.

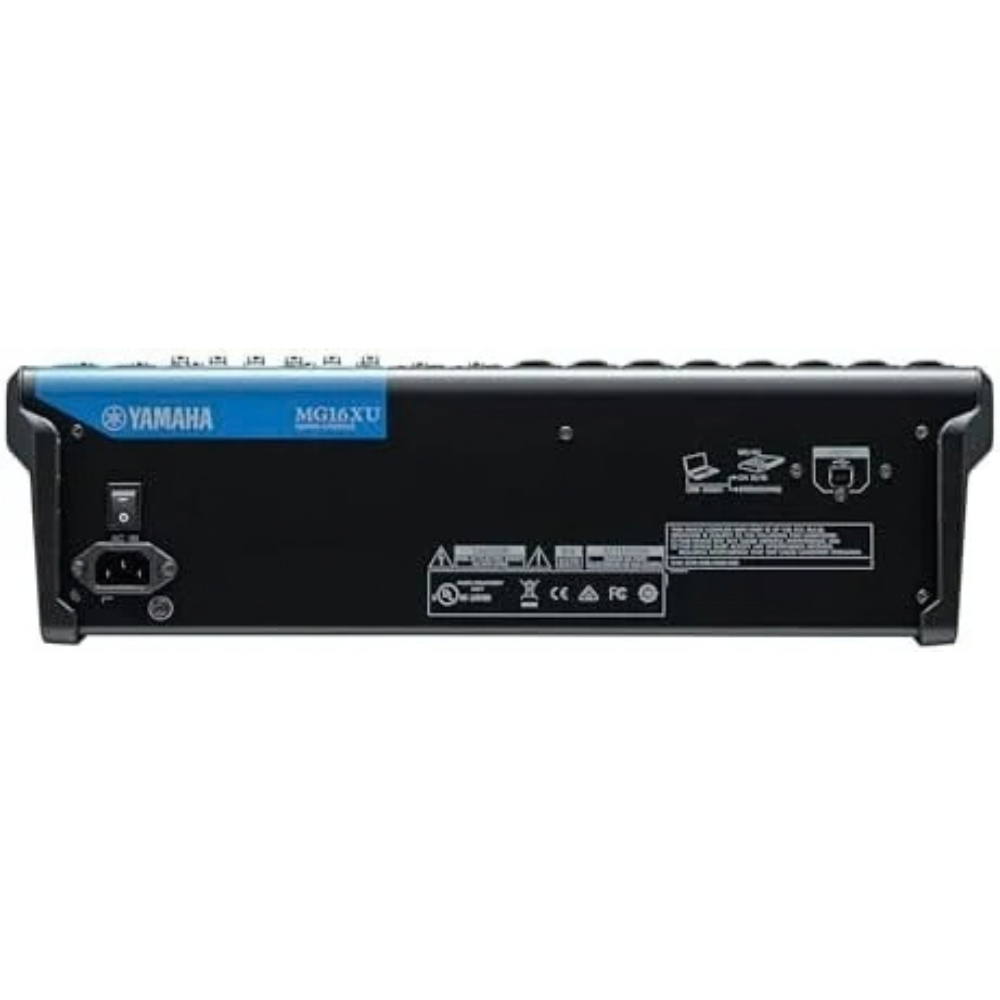

Connectivity
| Connection | Details |
|---|---|
| Channels | 16 |
| Line Inputs | 16 |
| Maximum Mic Inputs | 10 |
| Combo Inputs | 8 |
| XLR Mic Inputs | 2 |
| USB | Yes |
| Hardware Interface | USB |
| Digital Effects | SPX |
| Microphone Preamps | Class-A D-PRE |
| EQ | 3-Band |
| High-Pass Filters | Yes |
| Compressors | 1-Knob Compressors |
Specifications
| Specification | Details |
|---|---|
| Brand | Yamaha |
| Model | MG16XU |
| Model Number | MG16XU |
| Number of Channels | 16 |
| Mixer Type | Analog Mixer with USB |
| Item Weight | 14.99 lb / 6.8 kg |
| Product Dimensions | 20.59 x 8.39 x 22.01 in |
| Power Source | Corded Electric |
| Voltage | 48 V |
| Wattage | 30 W |
| Connectivity Technology | USB |
| ASIN | B00I0Q8LIO |
| First Available | February 4, 2014 |
| Discontinued | No |
Ideal Applications
The Yamaha MG16XU is well suited for:
- Live sound reinforcement
- Bands and musicians
- Rehearsal spaces
- Houses of worship
- Small and medium-sized venues
- Recording studios
- Home and project studios
- Mobile sound systems
- Events and performances
- Computer-based recording
Professional Mixing Workflow
The combination of D-PRE preamps, 3-band EQ, high-pass filters, 1-knob compressors, SPX digital effects, and USB connectivity provides a straightforward workflow for shaping individual channels and creating polished mixes.
The MG16XU’s hands-on controls make it suitable for users who want direct access to essential mixing functions while maintaining the flexibility of digital recording and effects processing.
Why Choose the Yamaha MG16XU?
The Yamaha MG16XU brings together professional-grade D-PRE microphone preamps, versatile 16-channel connectivity, USB audio functionality, SPX digital effects, practical channel processing, and rugged metal construction. Its combination of straightforward operation and professional audio features makes it a versatile solution for live performance, recording, rehearsal, and production environments.
